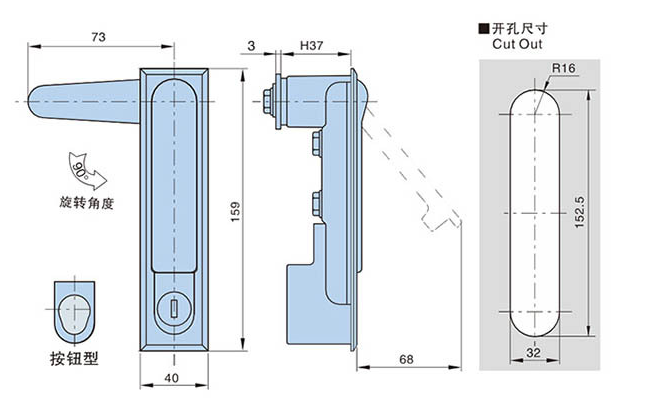

KL480-1

1.主体材质:锌合金锁体、镀锌压板、锁片2.表面处理:镀沙铬3.适用板厚:1~4mm 4.备注:锁片开孔10x10

PDF下载 2D下载 3D下载


1.Main material: zinc alloy lock body, galvanized pressure plate, lock plate

2.Surface treatment: sand chromium plating

3.Applicable plate thickness: 1-4mm 4. Remarks: Lock plate opening 10x10

产品型号及特性 Product Number产品单重(g) Weight装箱数 Lot
带锁芯 With keyKL480-1-177050
按钮型 Push buttonKL480-1-278050
