KL480-2

1.主体材质:锌合金锁壳、转轴、镀锌压板、锁片2.表面处理:喷亚光黑、镀沙铬3.适用板厚:1~5mm 4.备注:锁片开孔10x10

PDF下载 2D下载 3D下载

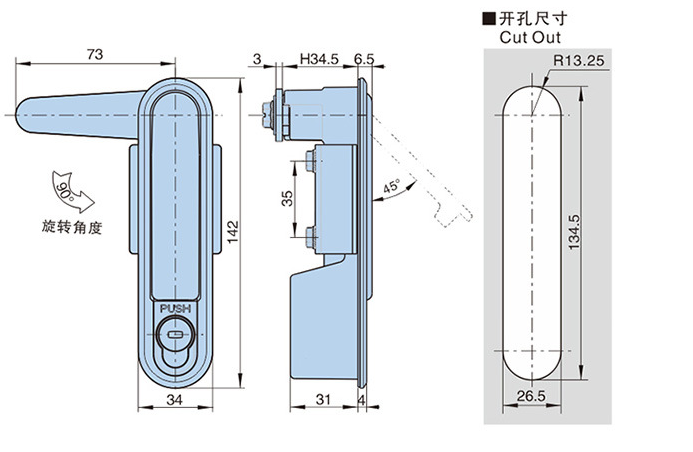

KL480-2-1、KL480-2A-1

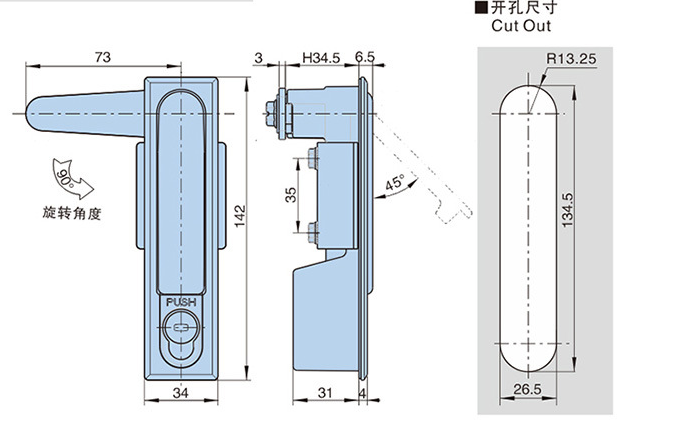

KL480A-2-1、KL480-2B-1

KL480-2-1Y

KL480-2B-1Y

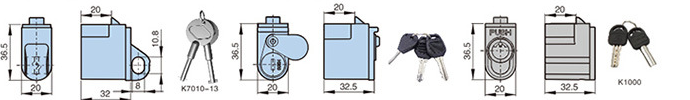

选配锁头系列

KL480-2(K0600) KL480-2(K0200)

KL480-2B(一字芯) KL4008Z-2(K0200)(可选配)带防尘盖 KL480-2(原子芯)(可选配)

1.Main material: Zinc alloy lock shell, shaft, galvanized pressure plate, lock plate

2.Surface treatment: matte black spray, sand chrome plating

3.Applicable plate thickness: 1-5mm

4.Remarks: Lock plate opening 10x10

表面处理Finsh	锁芯Insert	产品型号及特性 Product Number
		锌合金锁壳 Zinc die-casting housing						铝合金锁壳 Aluminium housing
		方形锁壳 Square type	产品单重（g）Weight	装箱数Lot	圆形锁壳 Round type	产品单重（g）Weight	装箱数Lot	方形锁壳 Square type	产品单重（g）Weight	装箱数Lot	圆形锁壳 Round type	产品单重（g)Weight	装箱数Lot
镀沙铬 Gray chrome plating	K0600	KL480-2-1.2	472	50	KL480-2-1Y.2	460	50
	K0200	KL480-2-2.2	468	50	KL480-2-2Y.2	457	50
	KL480-2B(一字芯)	KL480-2B-1.2	600	50	KL480-2B-1Y.2	600	50
		KL480-2C-1.2	600	50	KL480-2C-1Y.2	600	50
喷亚光黑 Black powder coated	K0600	KL480-2-1	472	50	KL480-2-1Y	460	50				KL480-2A-1Y	348	50
	K0200	KL480-2-2	468	50	KL480-2-2Y	457	50	KL480-2A-1	308	50	KL480-2A-2Y	358	50
	KL480-2B(一字芯)	KL480-2B-1	600	50	KL480-2B-1Y	600	50	KL480-2A-2	310	50
		KL480-2C-1	600	50	KL480-2C-1Y	600	50	KL480-2AC-1	310	50	KL480-2AC-1Y	358	50
