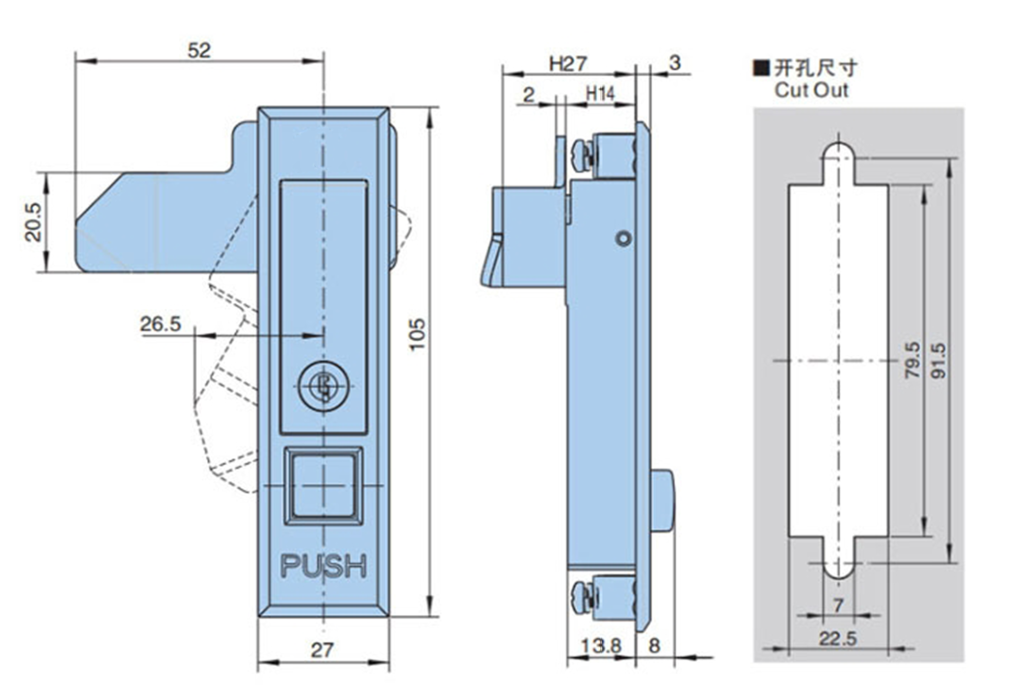

KL501-2

1.主体材质:锌合金锁体、镀锌压板、锁片2.表面处理:镀亮铬3.适用板厚:1~3mm 4.备注:锁片有左右之分

PDF下载 2D下载 3D下载


1.Main material: zinc alloy lock body, galvanized pressure plate, lock plate

2.Surface treatment: bright chrome plating

3.Applicable plate thickness: 1-3mm 4. Remarks: The lock plate can be left or right

型号 Product no.产品单重(g)Weight

装箱数Lot

KL501-2-1L178100
KL501-2-1R178100
