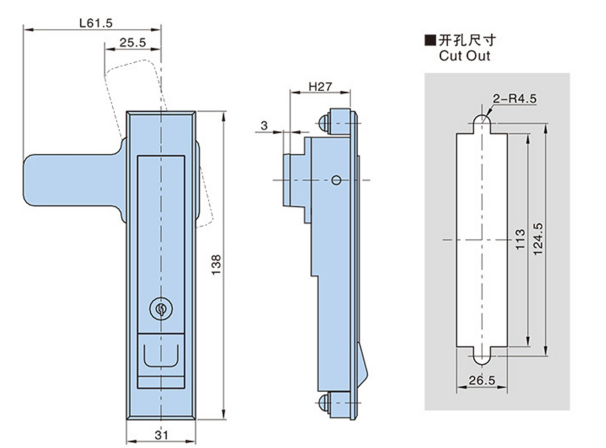

KL502-1-1

1.主体材质:锌合金锁体、镀锌压板、锁片2.表面处理:喷沙镀铬3.门板厚度: 1~4MM 4.备注:锁片有左右之分

PDF下载 2D下载 3D下载


1.Main material: zinc alloy lock body, galvanized pressure plate, lock plate.

2.Surface treatment: sandblasting and chrome plating.

3.Door plate thickness: 1-4MM.

4.Remarks: The lock plate can be left or right

型号 Product no.产品单重(g)Weight装箱数Lot
KL502-1-1L316100
KL502-1-1R316100
