KL-503

1.主体材质:锌合金锁体、镀锌压板、锁片2.适用板厚:1~4mm 3.表面处理:喷沙镀铬、镀亮铬4.备注:锁片有左右之分

PDF下载 2D下载 3D下载

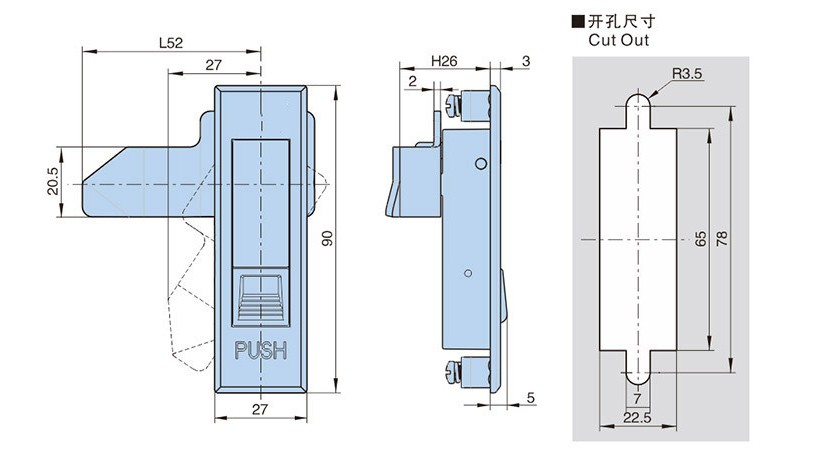

KL503-1-1L

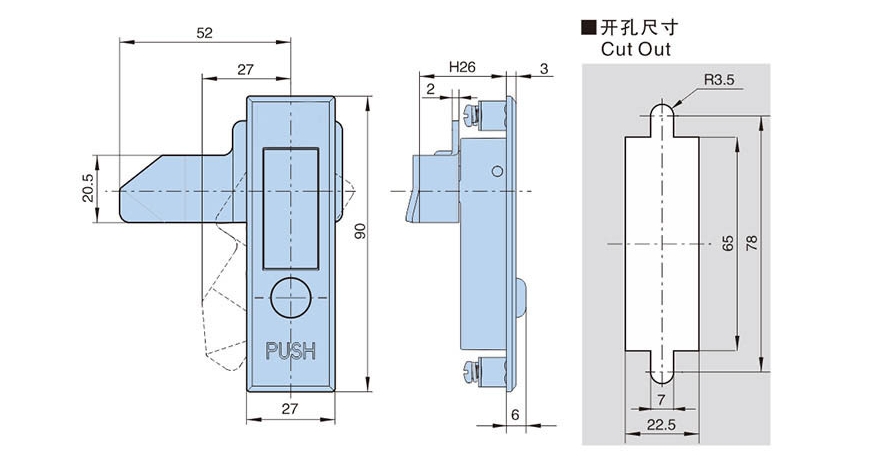

KL503-1-2L

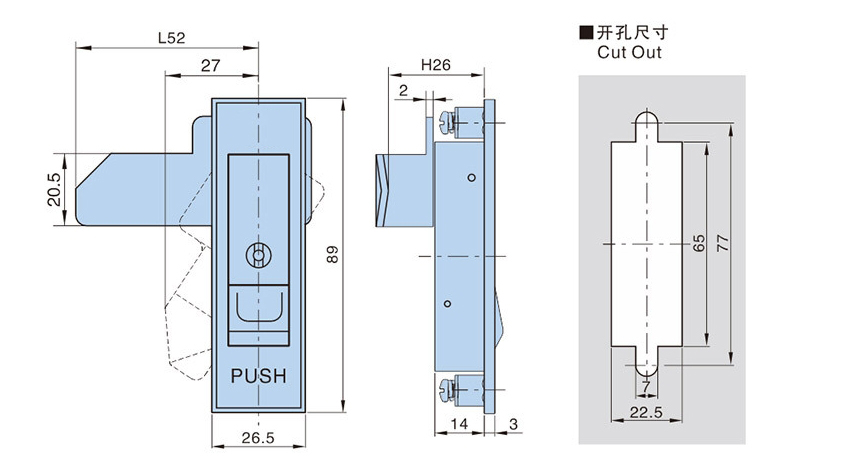

KL503-1-2AL


1.Main material: zinc alloy lock body, galvanized pressure plate, lock plate

2.Applicable plate thickness: 1-4mm

3.Surface treatment: sandblasting chrome plating, bright chrome plating

4.Remarks: The lock plate can be left or right

产品型号及特性 Product Number		产品单重(g)Weight	装箱数Lot
KL503-1-1L		143.5	200
KL503-1-1R		143.5	200
圆按钮(锌合金) circinal push button (zinc die-casting)	KL503-1-2L	145	200
圆按钮(锌合金) circinal push button (zinc die-casting)	KL503-1-2R	145	200
红按钮(塑料)red button(plastic)	KL503-1-2AL	121	200
红按钮(塑料)red button(plastic)	KL503-1-2AR	121	200
