KL-510

1.主体材质:锌合金锁体、镀锌压板、锁片2.表面处理:镀亮铬 ,喷漆灰3.门板厚度: 1~20mm 4.备注:折弯锁片有左右之分

PDF下载 2D下载 3D下载

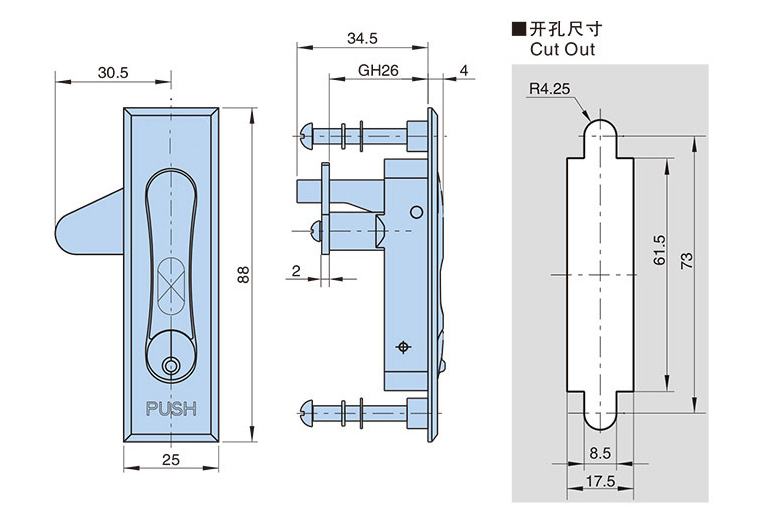

KL510-1-1

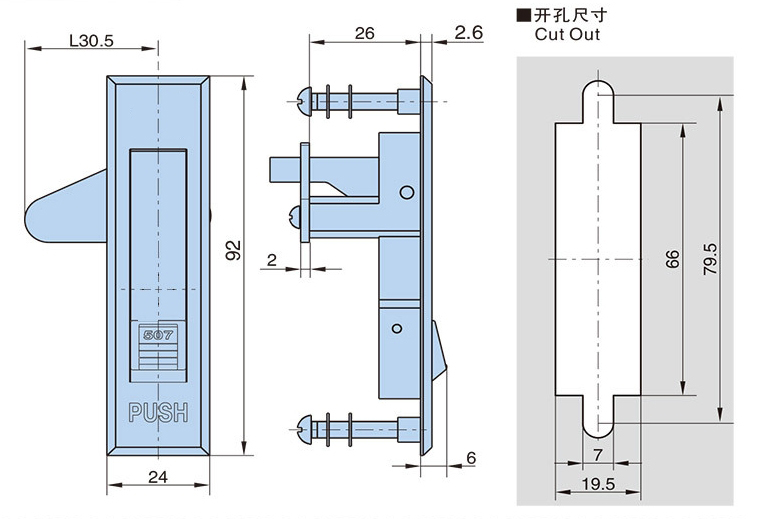

KL510-1-2

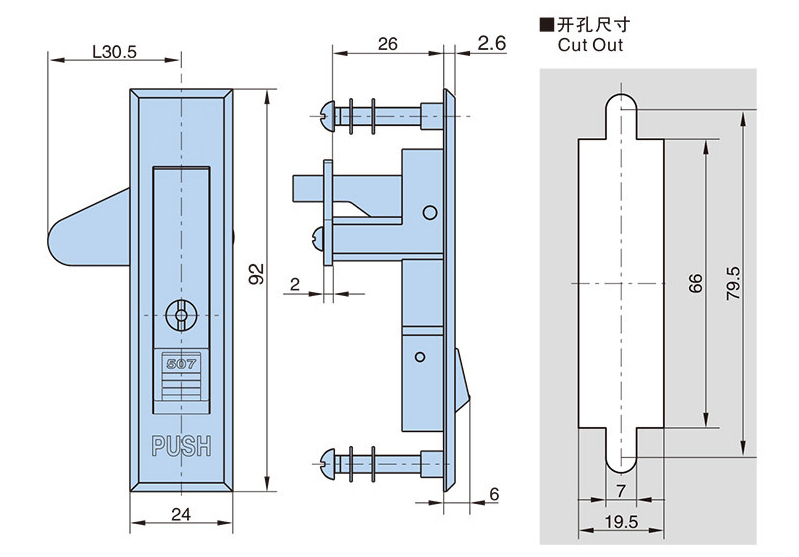

KL510-1-2A


1.Main material: zinc alloy lock body, galvanized pressure plate, lock plate.

2.Surface treatment: bright chromium plating, spray paint gray.

3.Door panel thickness: 1-20mm.

4.Remarks: The bent lock plate can be left or right
