KL-607

1.主体材质:锌合金锁体、镀锌压板、锁片2.表面处理:镀沙铬，喷无光黑3.适用板厚:1~7mm 4.备注:KL607-1锁片开孔10x10,其余型号锁片开孔8x8

PDF下载 2D下载 3D下载

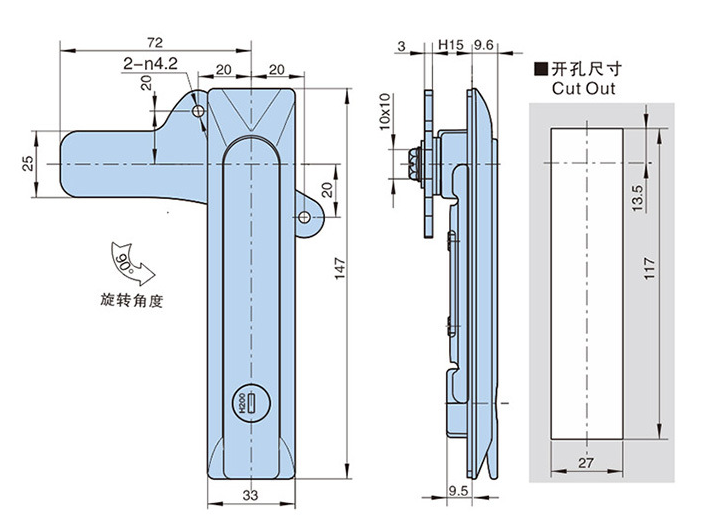

KL607-1-1

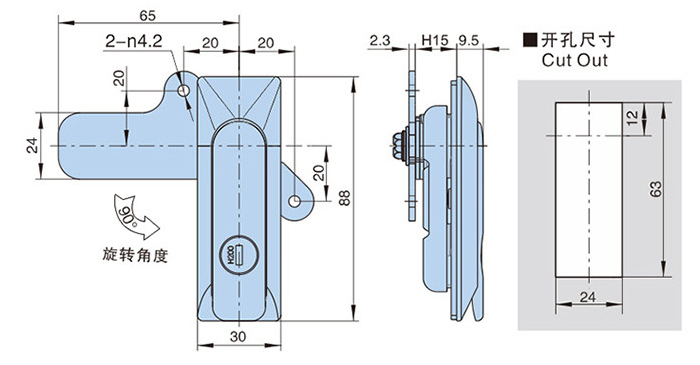

KL607-2-1

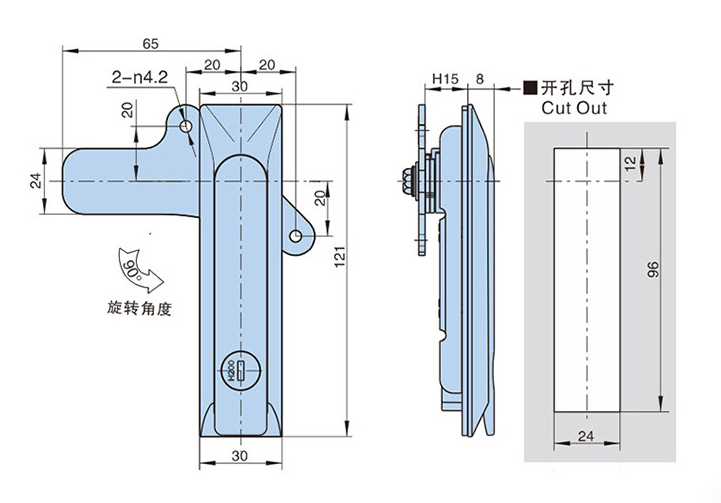

KL607-3-1

1.Main material: zinc alloy lock body, galvanized pressure plate, lock plate

2.Surface treatment: sand chromium plating, sprayed with matte black

3.Applicable plate thickness: 1-7mm

4.Remarks: KL607-1 lock plate hole 10x10, other models lock plate hole 8x8
