KL-610

1.主体材质:锌合金锁体、镀锌压板、锁片2.表面处理:镀亮铬、镀沙铬3.适用板厚:1~4mm 4.备注:折弯钢栓有左右之分

PDF下载 2D下载 3D下载

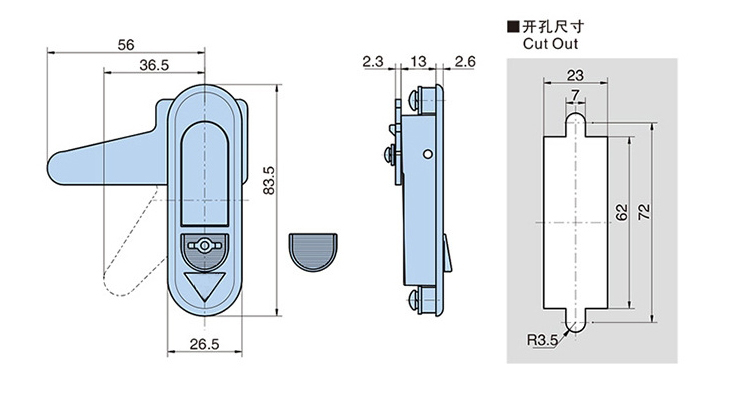

KL610-1-1

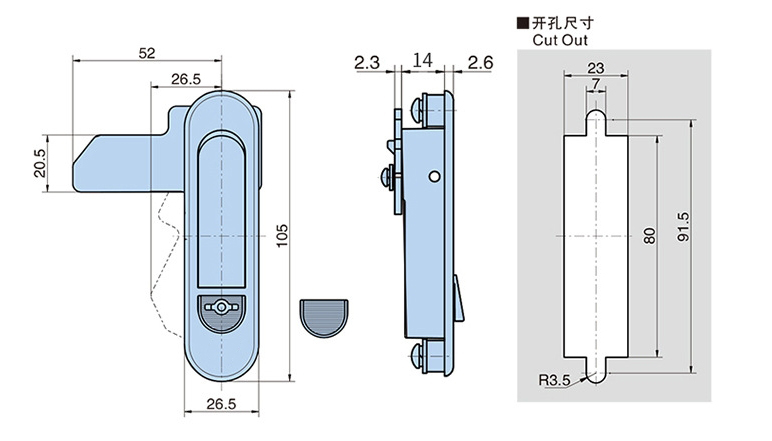

KL610-2-1

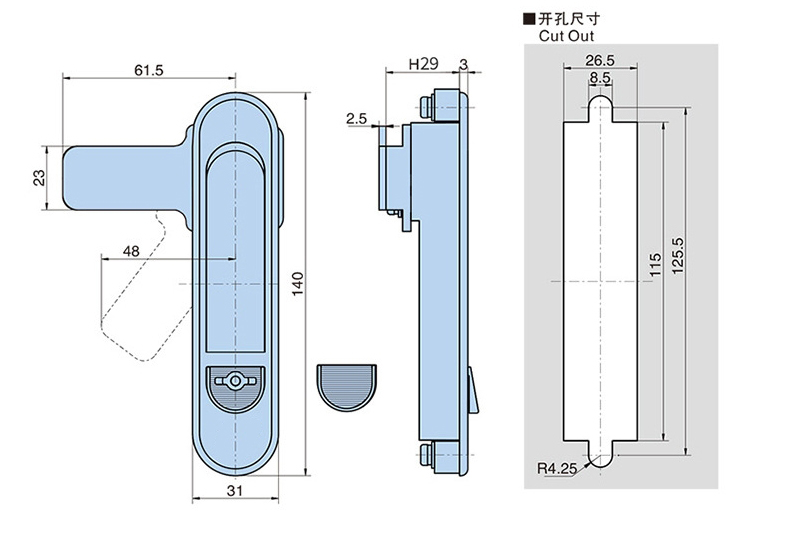

KL610-3-1、KL610-3-2


1.Main material: zinc alloy lock body, galvanized pressure plate, lock plate.

2.Surface treatment: bright chromium plating, sand chromium plating.

3.Applicable plate thickness: 1-4mm.

4.Remarks: The bent steel bolt can be left or right
