KL-716

1.材质：锌合金锁壳、转轴，镀锌压板、锁片2.表面处理：镀沙铬3.适用门板厚度：1~6mm 4.备注:KL607-1锁片开孔10×10 ,KL607-2锁片开孔8×8

PDF下载 2D下载 3D下载

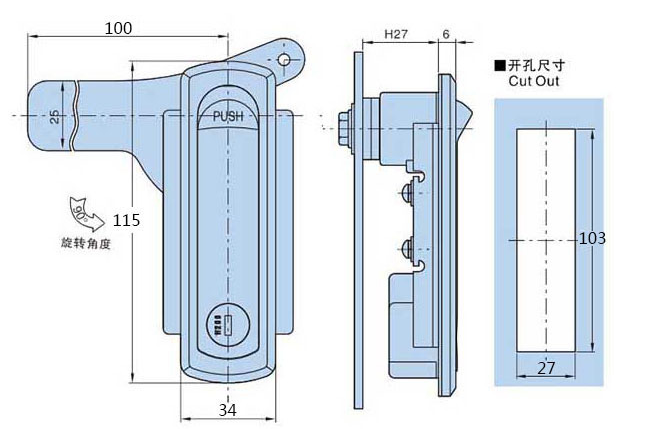

KL716-1-1

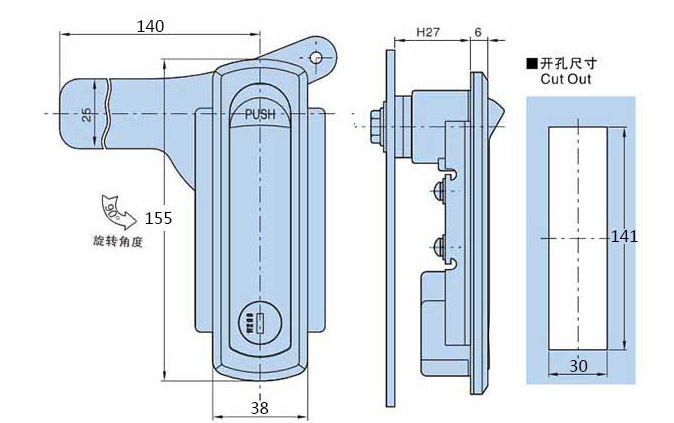

KL716-2-1

1.Material: Zinc alloy lock shell, shaft, galvanized pressure plate, lock plate.

2.Surface treatment: sand chromium plating.

3.Applicable door plate thickness: 1-6mm.

4.Remarks: KL607-1 lock plate opening 10 × 10, KL607-2 lock plate opening 8 × 8
