KL733-3

1.主体材质: PA锁体，锁芯2.表面处理: 火花纹3.结构功能:锁芯旋转180°,实现锁闭或开启，锁舌压缩行程6MM.

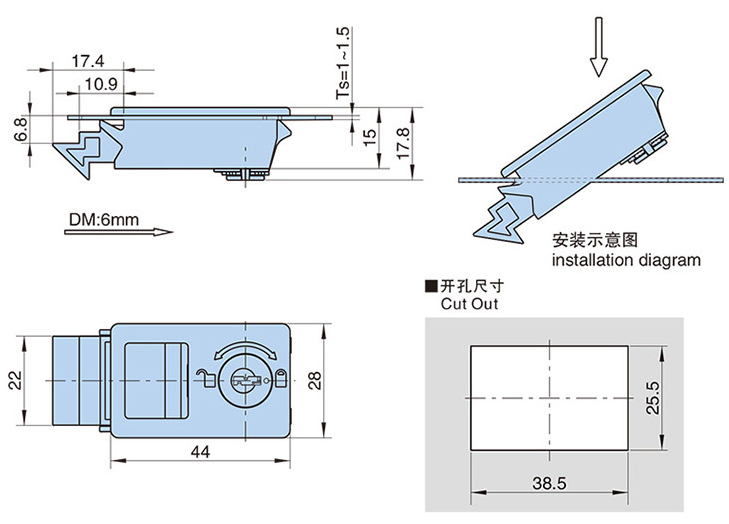

PDF下载 2D下载 3D下载


1.Main material: PA lock body, lock core

2.Surface treatment: Spark pattern

3.Structural function: The lock core rotates 180 ° to achieve locking or opening, and the compression stroke of the lock tongue is 6mm

型号 Product no.产品单重(g)Weight装箱数Lot
KL733-320.5300
