KL-743

1.主体材质: 锌合金锁体，镀锌安装板、锁片2.表面处理:喷沙纹黑3.门板厚度: 1~2MM 4.备注:锁片开孔8x8

PDF下载 2D下载 3D下载

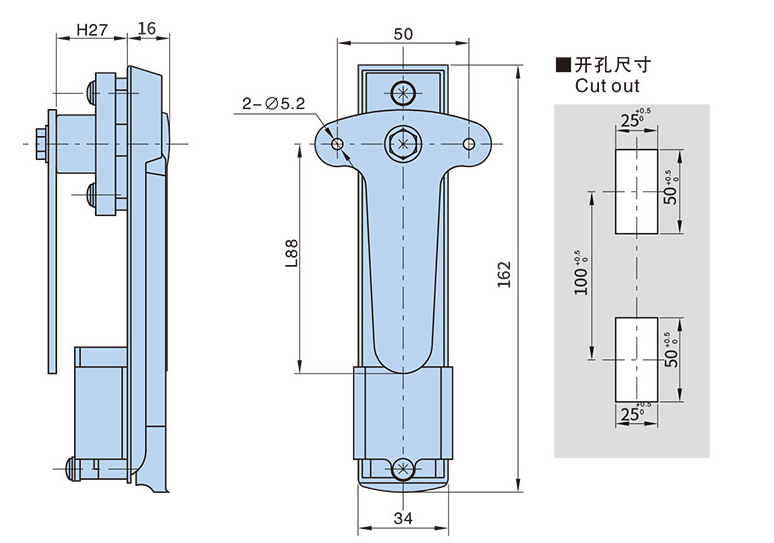

KL743-1-1

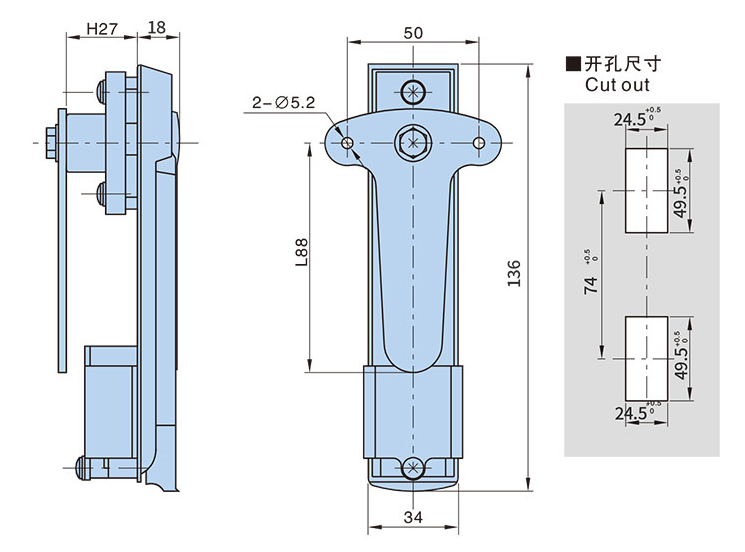

KL743-2-1


1.Main material: Zinc alloy lock body, galvanized installation plate, lock plate

2.Surface treatment: sandblasting black pattern

3.Door plate thickness: 1-2MM

4.Remarks: Lock plate opening 8x8

基本尺寸Dimensions产品型号Product Number产品单重(g)Weight装箱数Lot
L1L2L3B1H
162100502516KL743-1-151750
162100502516KL743-1-1G51750
1367449.524.518KL743-2-147850
