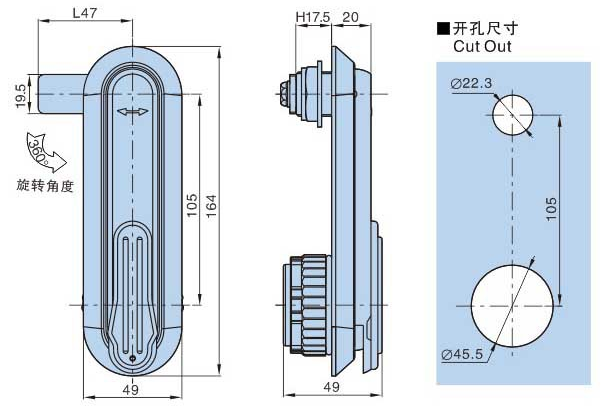

1.Material: PA66 lock body, zinc alloy nut, lock core, galvanized lock plate.
2.Applicable door plate thickness: 1-3mm.
3.Remarks: Lock plate opening 8 × 8
| 锁芯类别Insert types | 产品型号及特性 Product Number | |||||||
| 不带挂锁装置 w/o padlock | 产品单重(g)Weight | 装箱数Lot | 带挂锁装置 With padlock | 产品单重(g)Weight | 装箱数Lot | |||
| 黑色沙纹面Matt black | 喷橡皮漆Soft touch | 黑色沙纹面Matt black | 喷橡皮漆Soft touch | |||||
| K0100(A) | KL821-2-1A | KL821-2-1A.6 | 358 | 100 | KL821-2-1AG | KL821-2-1AG.6 | 435 | 100 |
| K0133(B) | KL821-2-1B | KL821-2-1B.6 | 358 | 100 | KL821-2-1BG | KL821-2-1BG.6 | 435 | 100 |
| K7010(C) | KL821-2-1C | KL821-2-1C.6 | 405 | 100 | KL821-2-1CG | KL821-2-1CG.6 | 492 | 100 |
| K7030(D) | KL821-2-1D | KL821-2-1D.6 | 405 | 100 | KL821-2-1DG | KL821-2-1DG.6 | 492 | 100 |
