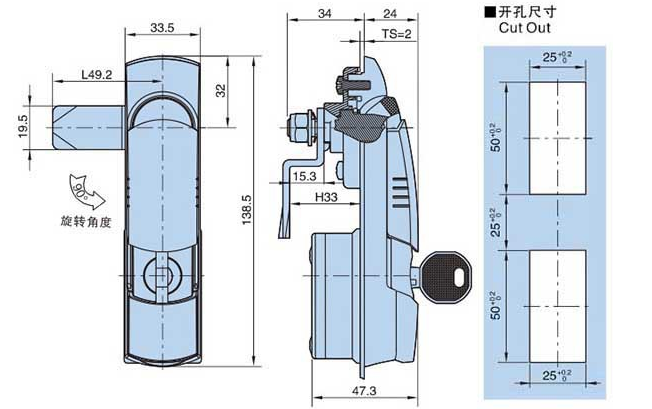

KL836-1-1

1.材质：PA66锁体、锁背、防水盖、镀锌钢锁片2.表面处理：黑色沙纹面3.适用门板厚度：1~2mm 4.备注：K333、锁片开孔8×8

PDF下载 2D下载 3D下载


1.Material: PA66 lock body, lock back, waterproof cover, galvanized steel lock plate

2.Surface treatment: black sand grain surface

3.Applicable door panel thickness: 1-2mm

4.Remarks: K333, lock plate opening 8 × 8

型号 Product no.产品单重(g)Weight

装箱数Lot

KL836-1-1

234

100
