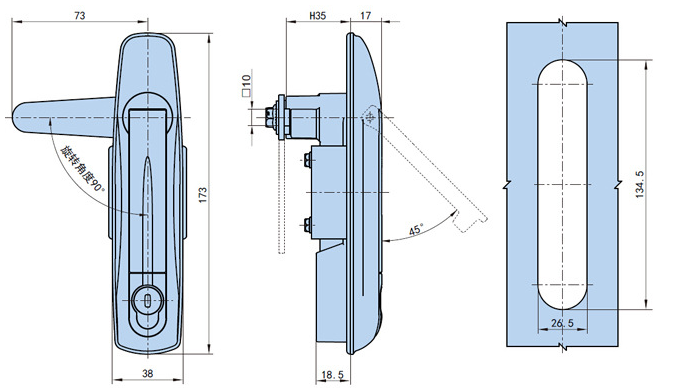

KL4090Z

1.材质:铝合金锁壳、芯大壳,锌合金手柄、转轴、芯小壳,A3安装板,锁片。2.表面处理:喷无光黑锁壳,锁背,镀亮铬芯大壳、芯小壳,配件镀蓝白锌。3.结构功能:快速开启,安装方便快捷,更换锁片可达到单点


1.Material: Aluminum alloy lock case, core large case, zinc alloy handle, shaft, core small case, A3 mounting plate, lock plate.

2.Surface treatment: Spray matte black lock shell, lock back, plated with bright chrome core large shell and core small shell, accessories plated with blue and white zinc.

3.Structural function: Quick opening, easy and fast installation, can achieve single point and three-point locking function by replacing the lock plate.

4.Applicable door panel thickness: 1-10MM.

5.Remarks: Lock plate opening 10X10

型号 Product no.产品单重(g)Weight

装箱数Lot

KL4090Z-1-1453.350
