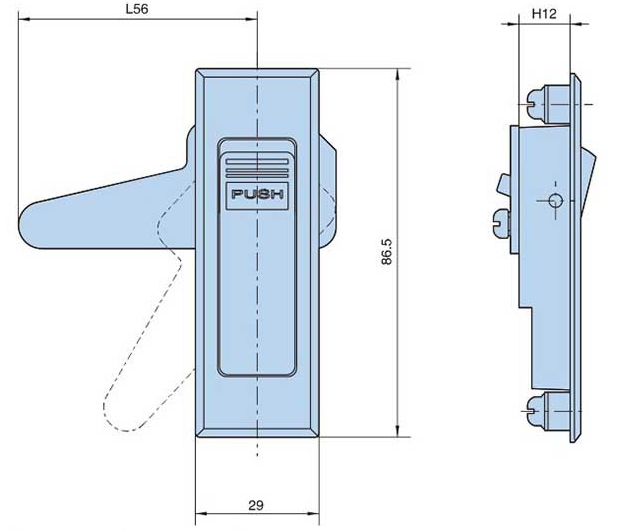

KL6003Z

1.材质:锌合金锁体、转轴,镀锌锁片、压板2.表面处理:镀沙铬3.适用门板厚度:1~4mm 4.备注:锁片开孔8×8



1.Material: Zinc alloy lock body, shaft, galvanized lock plate, pressure plate

2.Surface treatment: sand chromium plating

3.Applicable door panel thickness: 1-4mm

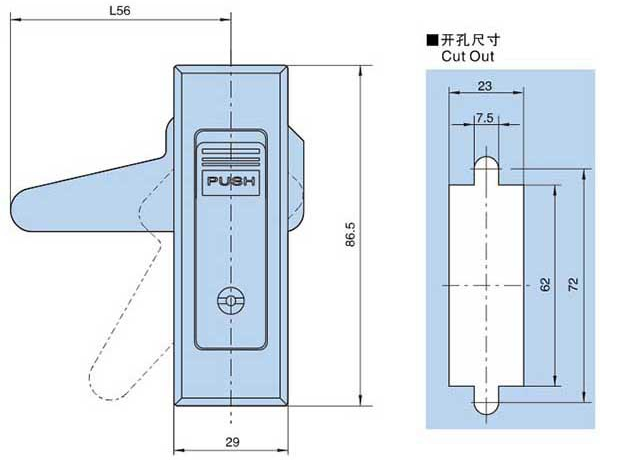

4.Remarks: Lock plate opening 8 × 8

产品型号及特性 Product Number产品单重(g) Weight装箱数 Lot
有锁芯 With keyKL6003Z-2-1135
100
无锁芯 w/o keyKL6003Z-2-2134100
