KL6022Z

1.材质：锌合金锁体，碳钢锁片、安装板2.表面处理：镀沙铬3.结构功能：手柄向上打开，带动锁片90°旋转实现开启。4.适用门板厚度：1~4mm 5.备注：锁片开孔10X10.

PDF下载 2D下载 3D下载

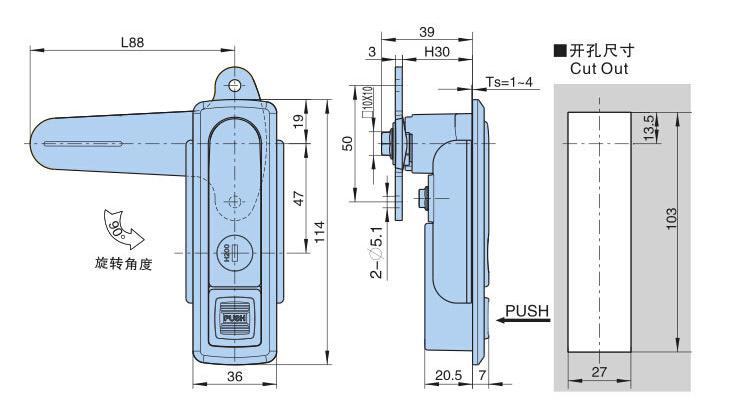

KL6022Z-1-1

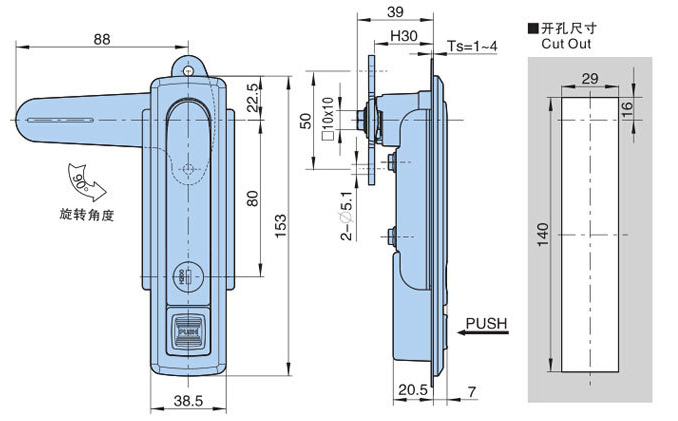

KL6022Z-2-1

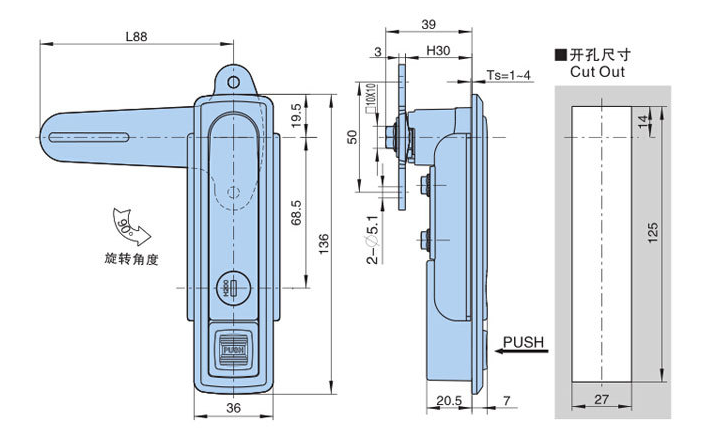

KL6022Z-3-1

1.Material: Zinc alloy lock body, carbon steel lock plate, mounting plate

2.Surface treatment: sand chrome plating

3.Structural function: The handle opens upwards, driving the lock plate to rotate 90 ° to achieve opening.

4.Applicable door panel thickness: 1-4mm.

5.Remarks: Lock plate opening 10X10
