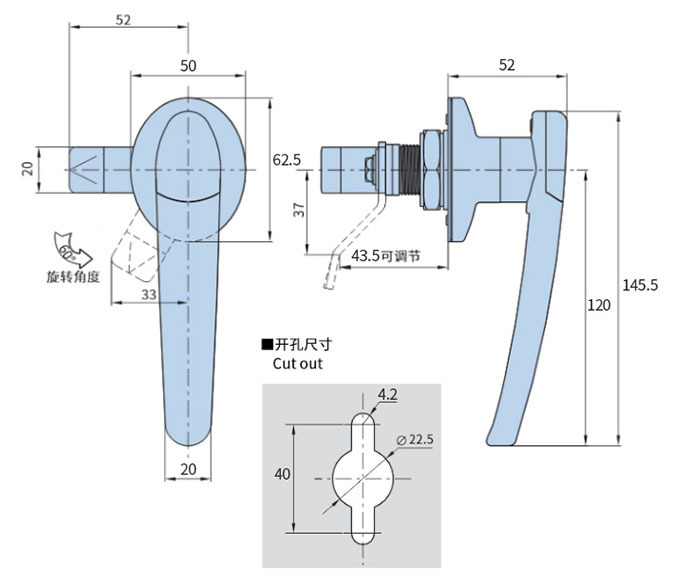

KL-AB701-1-1

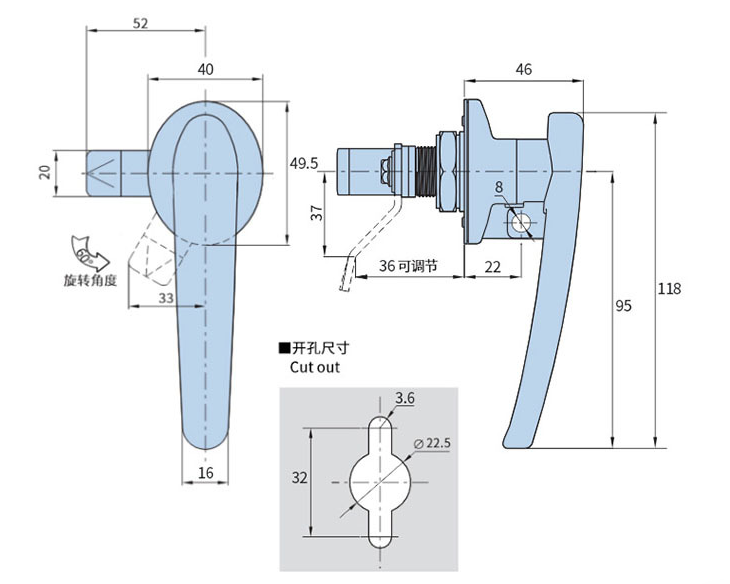

KL-AB701-2-2G

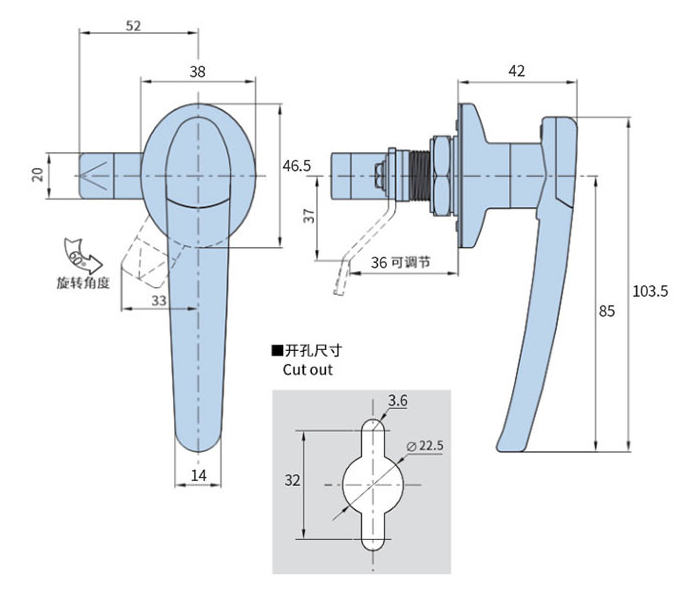

KL-AB701-3-1
1.Material: Zinc alloy lock body, nut, galvanized lock plate.
2.Surface treatment: Bright chrome plating.
3.Applicable plate thickness: 1-7MM.
4.Lock plate opening: 10x10 (KL-AB701-1-1/2); 8x8 (KL-AB701-2-1/2, KL-AB701-3-1/2).
5.Remarks: The handle with hanging series can only be rotated clockwise by 90 °. The regular lock can be rotated clockwise by 60 ° or counterclockwise by 60 °, and can also be customized to rotate by 90 °
| 基本尺寸 Dimensions | 产品型号及特性 Product Number | ||||||||||||||||||
| L1 | L2 | L3 | L4 | B1 | B2 | H1 | H2 | H3 | R | D | 有锁芯 With key | 产品单重(g) Weight | 装箱数 Lot | 无锁芯 w/o key | 产品单重(g) Weight | 装箱数Lot | 无锁芯带挂 Padlock able w/o key | 产品单重(g) Weight | 装箱数Lot |
| 145.5 | 120 | 62.5 | 40 | 50 | 20 | 52 | 43.5 | 25 | 4.25 | 8 | KL-AB701-1-1 | 466.5 | 50 | KL-AB701-1-2 | 472 | 465 | KL-AB701-1-2G | 422.5 | 50 |
| 118 | 95 | 49.5 | 32 | 40 | 16 | 46 | 36 | 22 | 3.6 | 8 | KL-AB701-2-1 | 298 | 50 | KL-AB701-2-2 | 273 | 100 | KL-AB701-2-2G | 279 | 312 |
| 103.5 | 85 | 46.5 | 32 | 38 | 14 | 42 | 36 | 17 | 3.6 | 7 | KL-AB701-3-1 | 225 | 100 | KL-AB701-3-2 | 231 | 262.5 | KL-AB701-3-2G | 236.5 | 100 |
