KL-303-1
KL-303-2
1.Main material: zinc alloy lock body, nut, galvanized lock plate
2.Surface treatment: bright chrome plating
3.Applicable plate thickness: 1-3mm

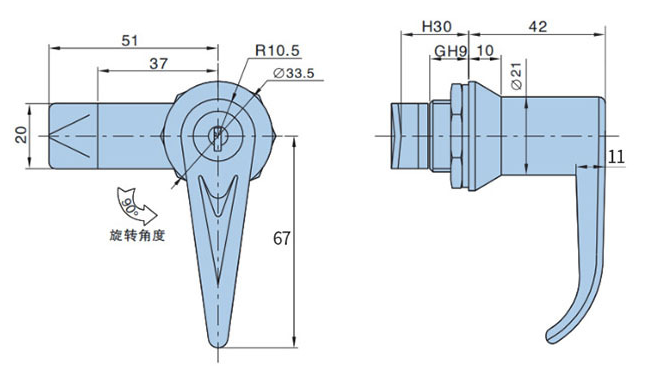

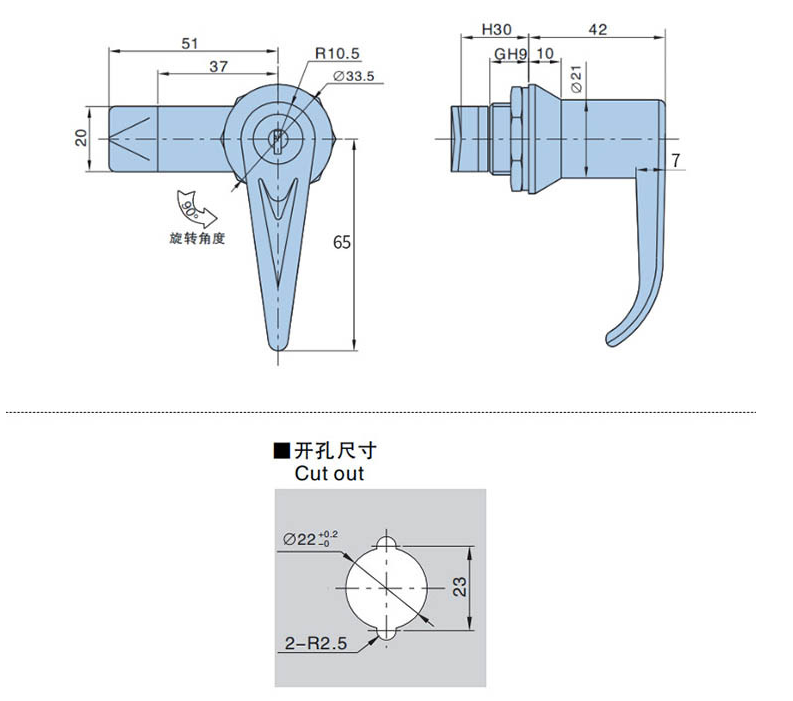

基本尺寸 Dimensions | 产品型号及特性 Product Number | ||||||
| L | H | 有锁芯 With key | 产品单重(g)Weight | 装箱数Lot | 按钮型 Push button | 产品单重(g)Weight | 装箱数Lot |
| 67 | 11 | KL-303-1-1.1 | 188.7 | 100 | KL-303-1-2.1 | 179.6 | 100 |
| 65 | 7 | KL-303-2-1.1 | 186.8 | 100 | KL-303-2-2.1 | 178.5 | 100 |
