KL-304

1.主体材质:锌合金锁体、钢螺母，镀锌锁片2.表面处理:镀亮铬3.适用板厚:1~3mm

PDF下载 2D下载 3D下载

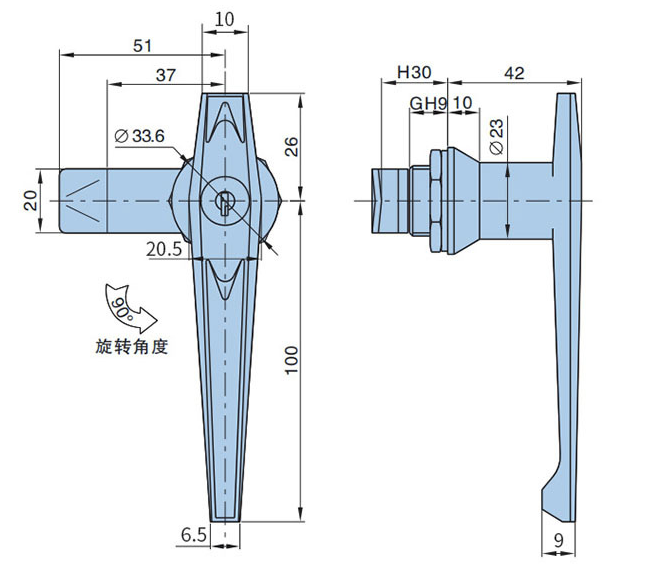

KL-304-1

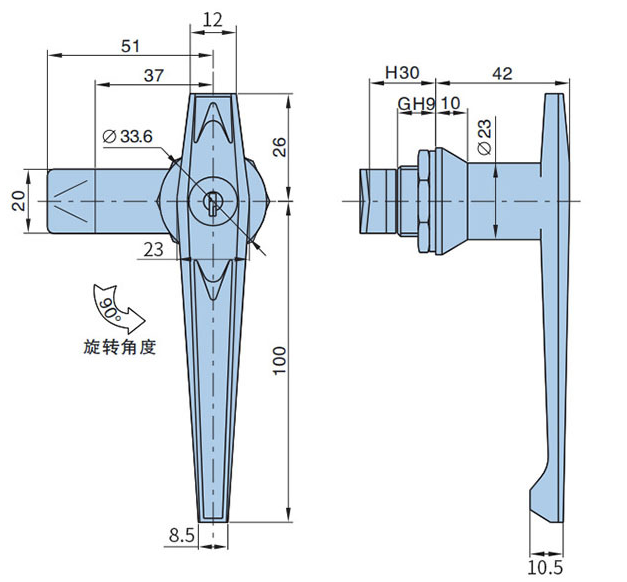

KL-304-2


1.Main material: zinc alloy lock body, steel nut, galvanized lock plate

2.Surface treatment: bright chrome plating

3.Applicable plate thickness: 1-3mm

基本尺寸Dimensions产品型号及特性 Product Number
B1B2B3H有锁芯With key产品单重(g)Weight装箱数Lot

按钮型

Push button

产品单重(g)Weight

装箱数Lot
12238.510.5KL-304-1-1258100KL-304-1-2268100
1020.56.59KL-304-2-1232
100KL-304-2-2242100
