KL-305-1-1R

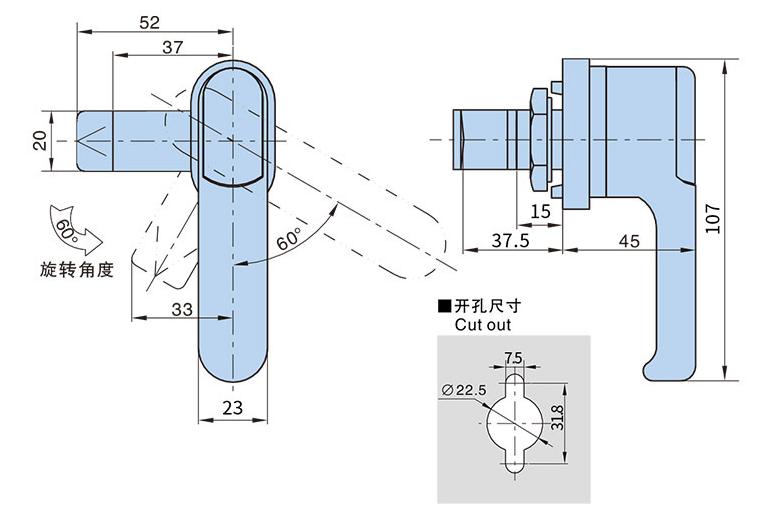

KL-305-2-1R
1.Main material: zinc alloy lock body and nut
2.Surface treatment: bright chromium plating, sand chromium plating
3.Suitable thickness: 1-5mm
| 基本尺寸Dimensions | 产品型号及特性 Product Number | ||||||||
| L1 | L2 | GH | B1 | B2 | H | 镀亮铬 Bright chrome plating | 镀沙铬 Gray chrome plating | 产品单重(g)Weight | 装箱数Lot |
| 150 | 40 | 22 | 28 | 8.5 | 45.5 | KL-305-1-1.1 | KL-305-1-1.2 | 516.6 | 50 |
| 107 | 31.8 | 15 | 23 | 7.5 | 37.5 | KL-305-2-1.1 | KL-305-2-1.2 | 376.5 | 100 |
