KL-306

1.主体材质:锌合金锁体、螺母、镀锌锁片2.表面处理:镀亮铬3.适用板厚:KL-306-1-1、KL-306-1A-1适用1~10mm,KL-306-2-1适用1~4mm

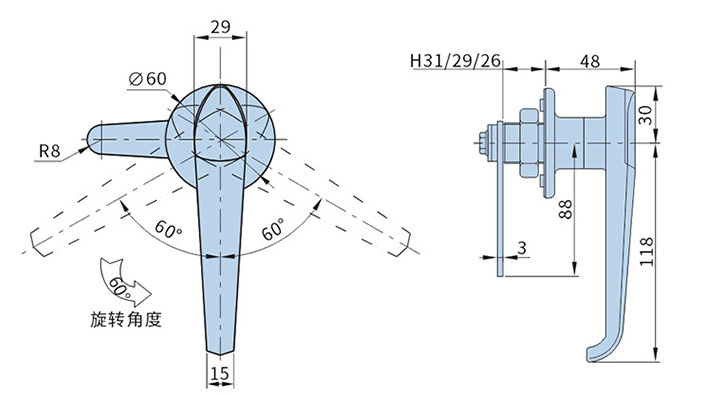

KL-306-1-1

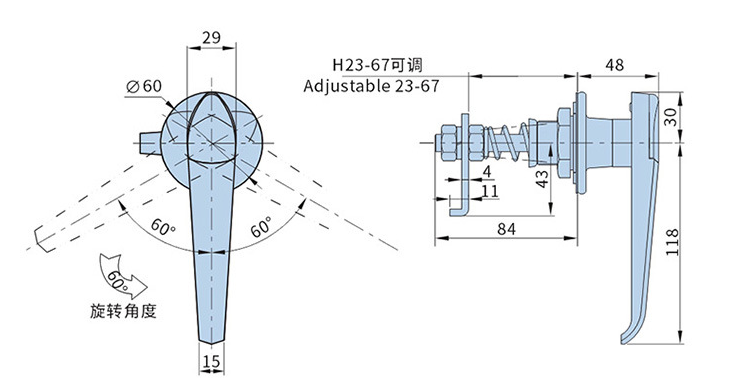

KL-306-1A-1

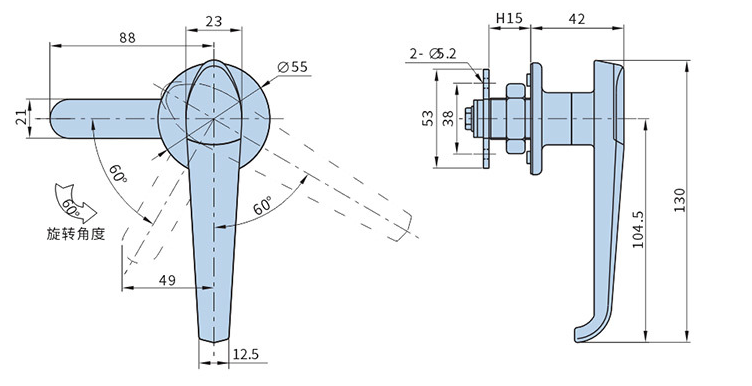

KL-306-2-1


1.Main material: zinc alloy lock body, nut, galvanized lock plate

2.Surface treatment: bright chrome plating

3.Applicable plate thickness: KL-306-1A-1, KL-306-1A-1 suitable for 1-10mm, KL-306-2-1 suitable for 1-4mm


型号Product no.转角Rotation angle产品单重(g)Weight装箱数Lot
KL-306-1-160°464.550
KL-306-1-1L顺时针(CW)90°
KL-306-1-1R逆时针(ACW)90°


型号Product no.转角Rotation angle产品单重(g)Weight装箱数Lot
KL-306-1A-160°

520

40
KL-306-1A-1L顺时针(CW)90°
KL-306-1A-1R逆时针(ACW)90°


型号Product no.产品单重(g)Weight装箱数Lot
KL-306-2-1(60°)

250.5

50
KL-306-2-1L 顺时针(CW90°)
KL-306-2-1R逆时针(CCW90°)
