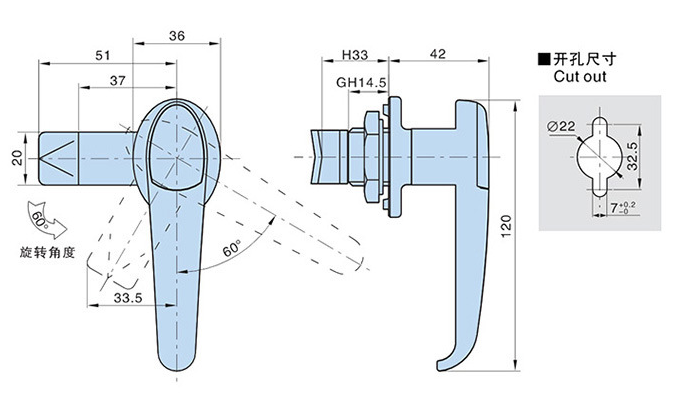

KL-308-1-1

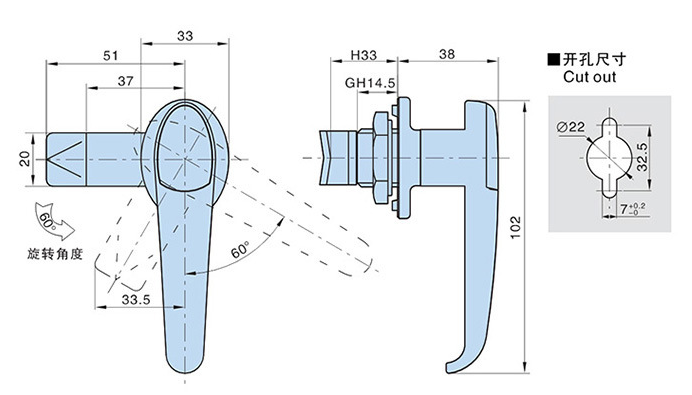

KL-308-2-1
1.Main material: zinc alloy lock body, nut, galvanized lock plate
2.Surface treatment: bright chrome plating
3.Applicable plate thickness: 1-6mm
| 产品型号Product Number | 转角Rotation angle | L1 | L2 | B | 产品单重(g)Weight | 装箱数Lot |
| KL-308-1-1 | 60° | 117 | 42 | 36 | 252.5 | 100 |
| KL-308-1-1L | 顺时针(CW)90° | 245.5 | 100 | |||
| KL-308-1-1R | 逆时针(ACW)90° | 245.5 | 100 | |||
| KL-308-2-1 | 60° | 102 | 38 | 33 | 189 | 100 |
| KL-308-2-1L | 顺时针(CW)90° | 195 | 100 | |||
| KL-308-2-1R | 逆时针(ACW)90° | 195 | 100 |
