KL-3004Z

1.材质：锌合金安装座，手柄2.表面处理：喷灰色亮面漆3.结构说明：手柄带动拔杆两点联4.适用门板厚度：1~3mm 5.备注：选配钥匙K7010-04

PDF下载 2D下载 3D下载



1.Material: Zinc alloy mounting seat, handle

2.Surface treatment: Spray gray glossy paint

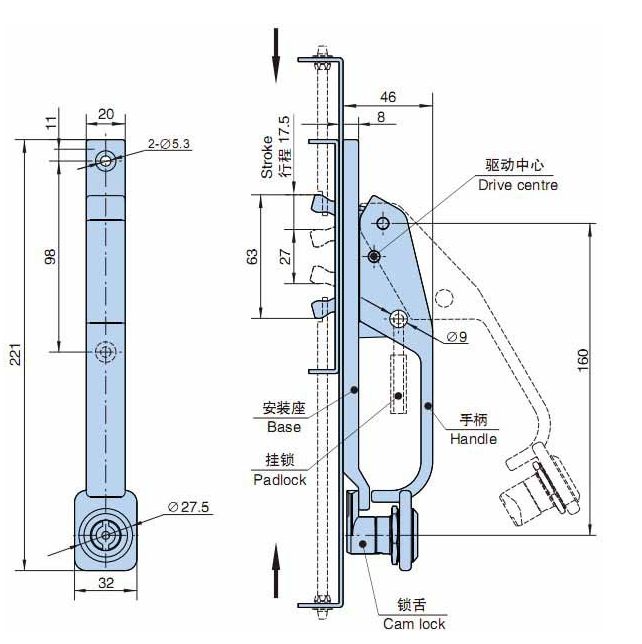

3.Structural description: The handle drives the pull-out rod with two points connected

4.Applicable door panel thickness: 1-3mm

5.Remarks: Optional key K7010-04

型号 Product no.产品单重(g)Weight

装箱数Lot

KL-3004Z-1-154624
