KL-N-1

1.材质:锌合金手柄、底座、螺母/不锈钢锁片 2.表面处理：镀亮铬/镀沙铬 3.适用门板厚度：1-10MM 4.防水等级:IP65

PDF下载 2D下载 3D下载


1.Material: Zinc alloy handle, base, nut/stainless steel lock plate

2.Surface treatment: Chrome plating/Sand chrome plating

3.Applicable door panel thickness: 1-10MM

4.Waterproof level: IP65

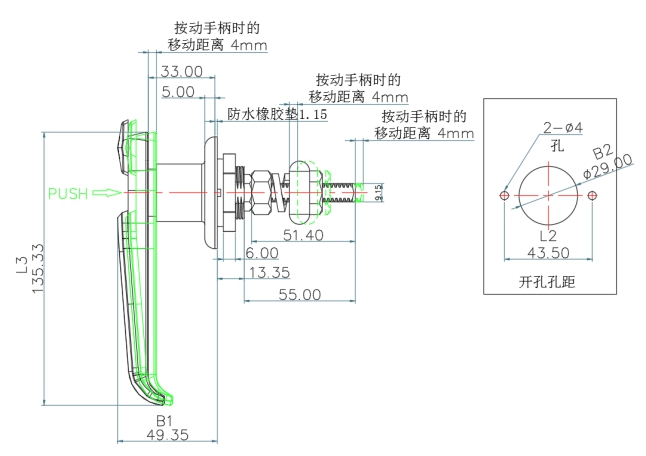

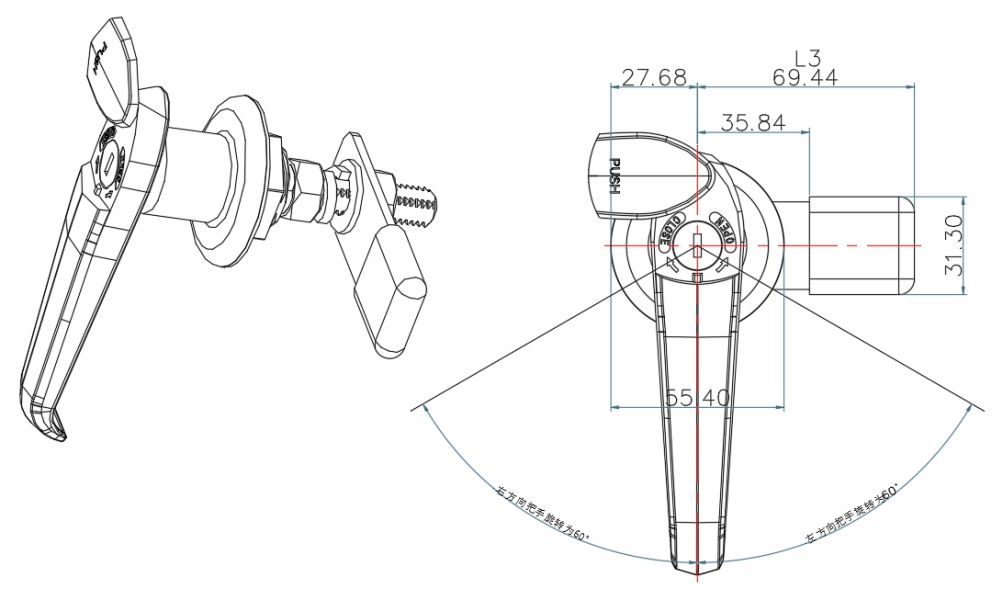

基本尺寸Basic dimensions产品型号Product
L1
L2L3B1B2KL-N-1
135.33
43.569.4449.35∅29
