KL-CL-4050

1.材质：锌合金铰链，不锈钢销子2.表面处理：亮铬/哑光铬/喷塑黑3.备注：可用不锈钢垫片/塑料垫片

PDF下载 2D下载 3D下载


1. Material: Zinc alloy hinge, stainless steel pin

2. Surface treatment: Bright chrome/matte chrome/spray black

3. Remarks: Stainless steel gasket/plastic gasket can be used

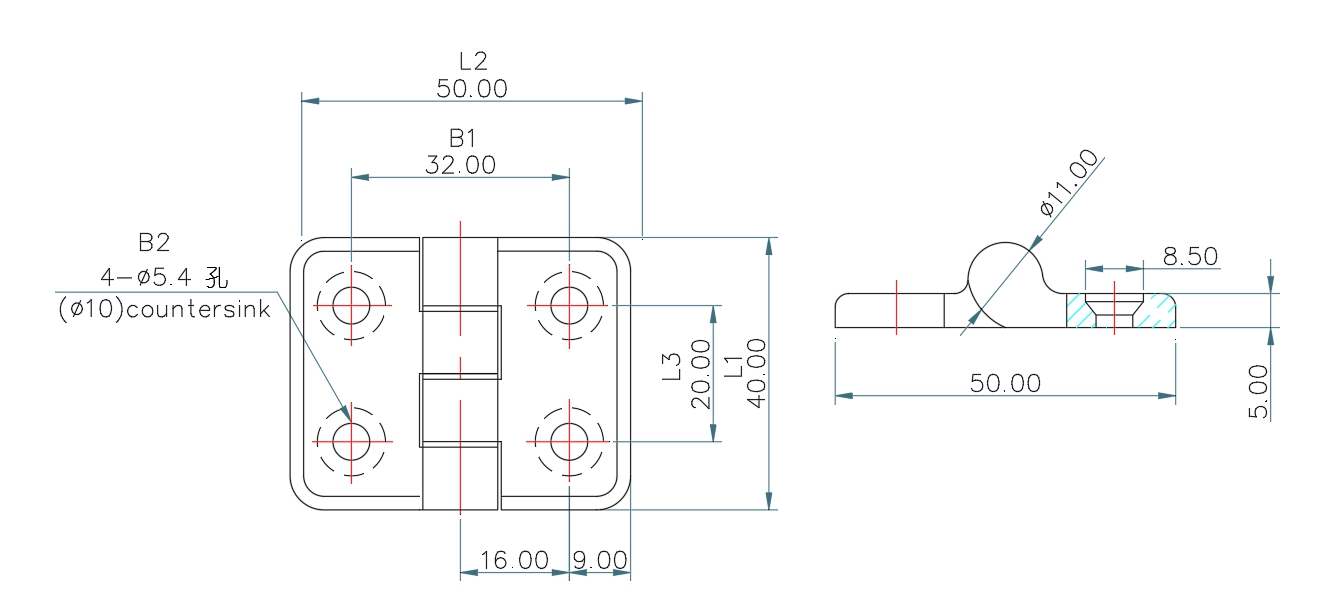

基本尺寸/Basic dimensions

产品型号

Product Model

产品单重

Weight

装箱数

PCS

L1L2L3B1B2CL-4050


40
50
2032
4-∅5.4
