1. Zinc alloy dynamic and static hinges
2. Divided into stainless steel and carbon steel pins
3. Spray matte black and bright chrome
4. Rotate approximately 180 °

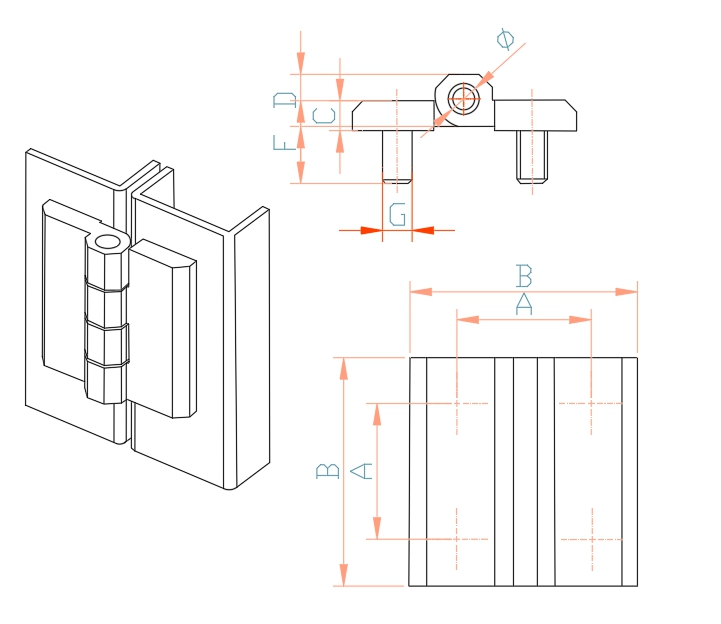

| 基本尺寸/Basic dimensions | 产品型号 Product Model | 产品单重 | 装箱数 | ||||||
| A | B | C | D | E | F | ∅ | |||
| 36 | 60 | 8 | 15 | ∅8 | 14 | M8 | CL-5050-3 | ||
| 30 | 50 | 6 | 11.5 | ∅8 | 12 | M6 | CL-5050-2 | ||
| 25 | 40 | 5 | 9 | ∅8 | 12 | M5 | CL-5050-1 | ||
