CL-6070-长孔

1.材料：锌合金铰链/碳钢销子2.表面处理：亮铬/沙铬/喷塑黑/喷漆黑/电泳黑3.备注：转动约为180°

PDF下载 2D下载 3D下载



1. Material: Zinc alloy hinge/carbon steel pin

2. Surface treatment: Bright chrome/Sand chrome/Spray black/Spray black/Electrophoretic black

3. Remarks: Rotate approximately 180 °

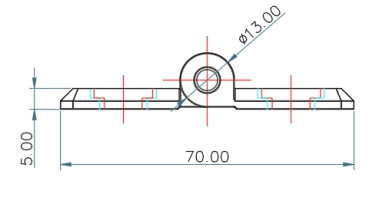

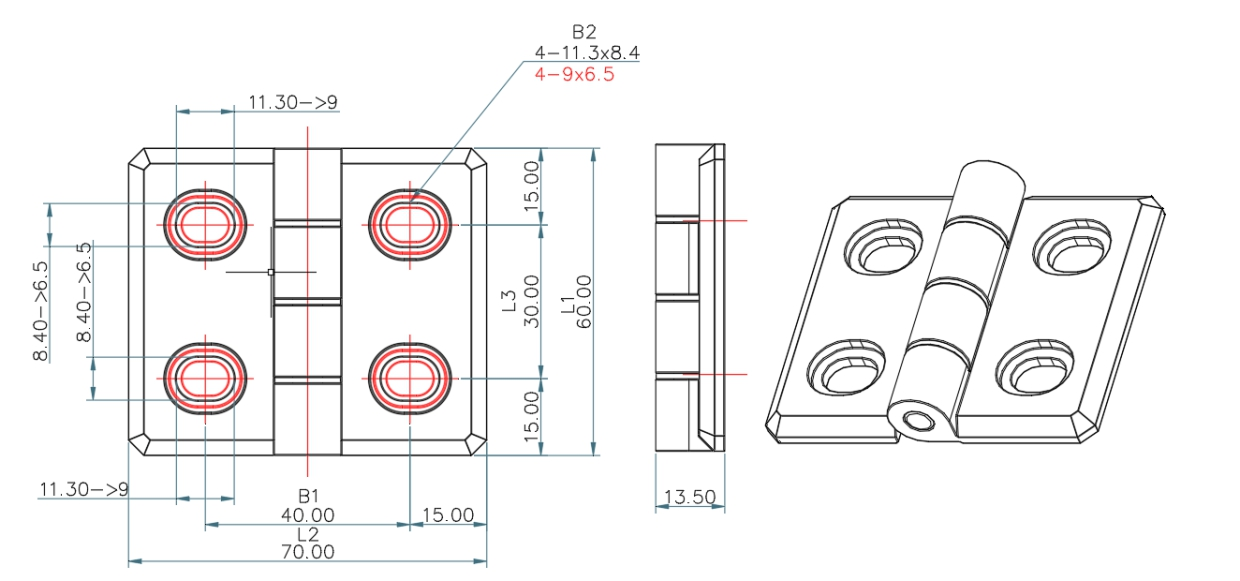

基本尺寸/Basic dimensions

产品型号

Product Model

产品单重

Weight

装箱数

PCS

L1L2L3B1B2


607030
404--11.3*8.4
