KL-CL-045

1.材质：锌合金铰链，PA-6面盖，碳钢销子2.表面处理：喷砂纹黑，碳钢销子镀蓝白锌3.结构说明：可开启180°

PDF下载 2D下载 3D下载


1. Material: Zinc alloy hinge, PA-6 cover, carbon steel pin

2. Surface treatment: sandblasted black, carbon steel pins coated with blue and white zinc

3. Structural description: Can be opened 180 °

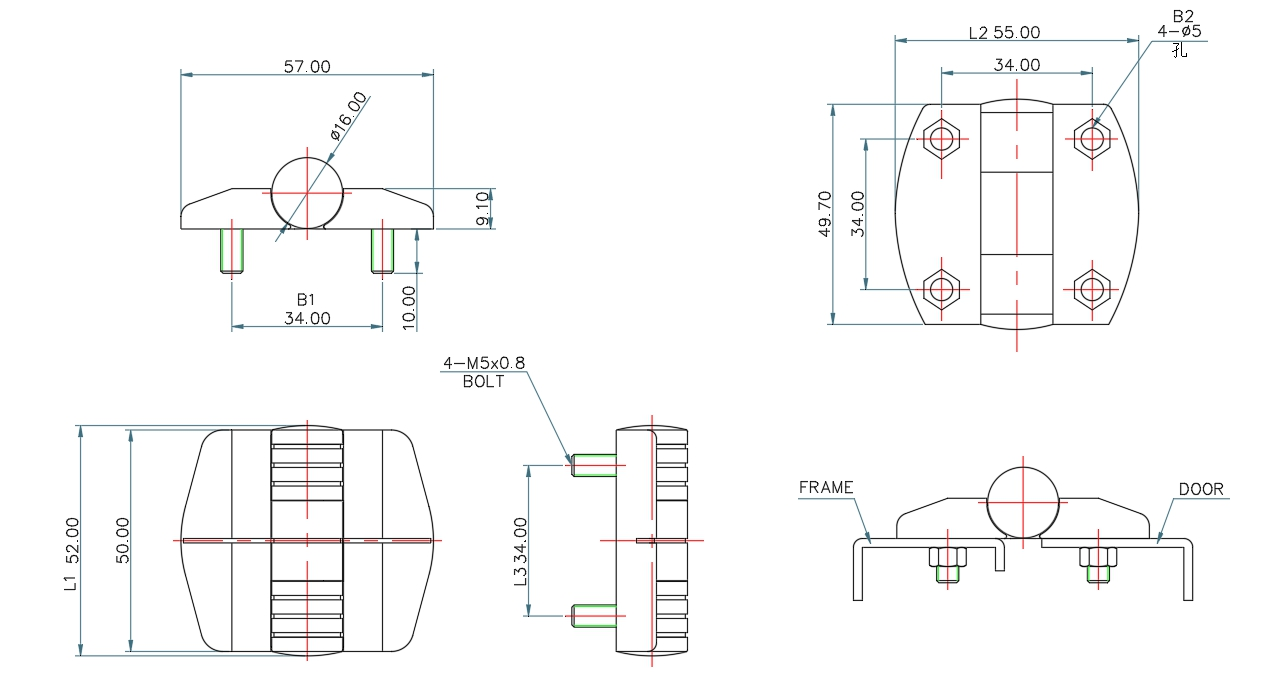

基本尺寸/Basic dimensions

产品型号

Product  Model

产品单重

Weight

装箱数

PCS

L1L2L3B1B2CL-045123
300
525534344-M5×0.8
