KL-CL-058

1.锌合金动、静铰链，不锈钢销子，镜面不锈钢面板，铜垫圈2.表面处理：镀亮铬/沙铬3.结构说明：转动约为180°

PDF下载 2D下载 3D下载





1. Zinc alloy dynamic and static hinges, stainless steel pins, mirror stainless steel panels, copper washers

2. Surface treatment: Bright chrome plating/sand chrome plating

3. Structural description: Rotation is about 180 °

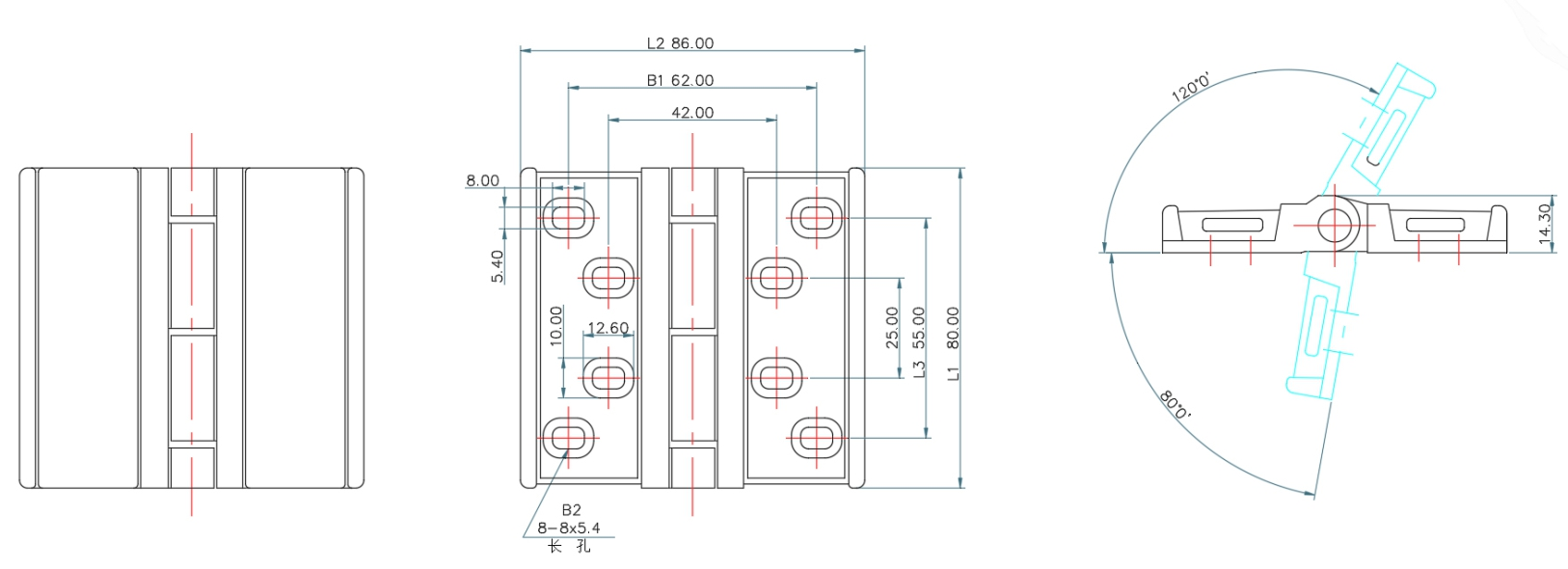

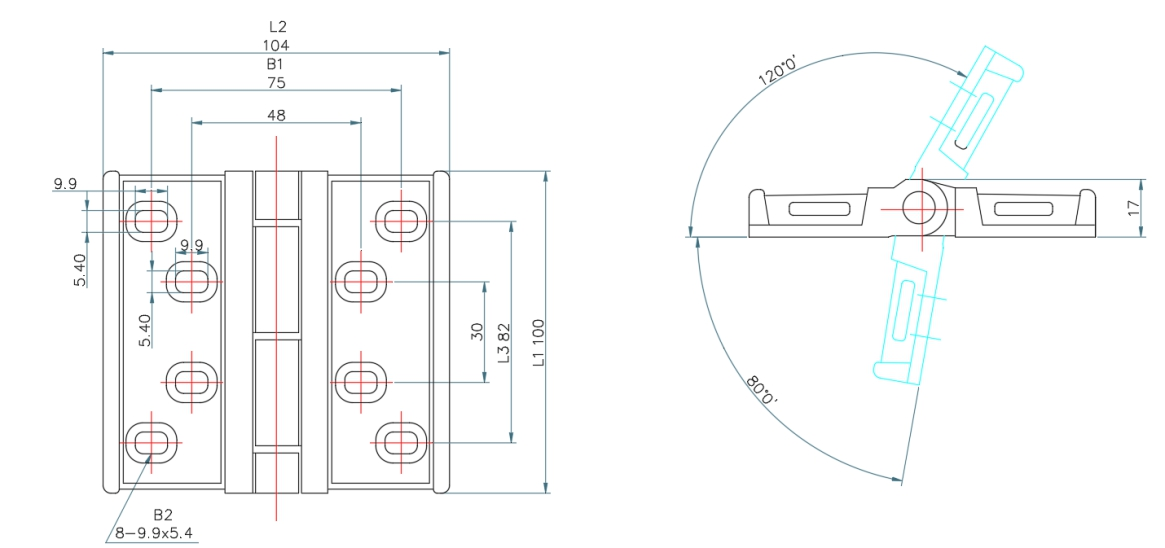

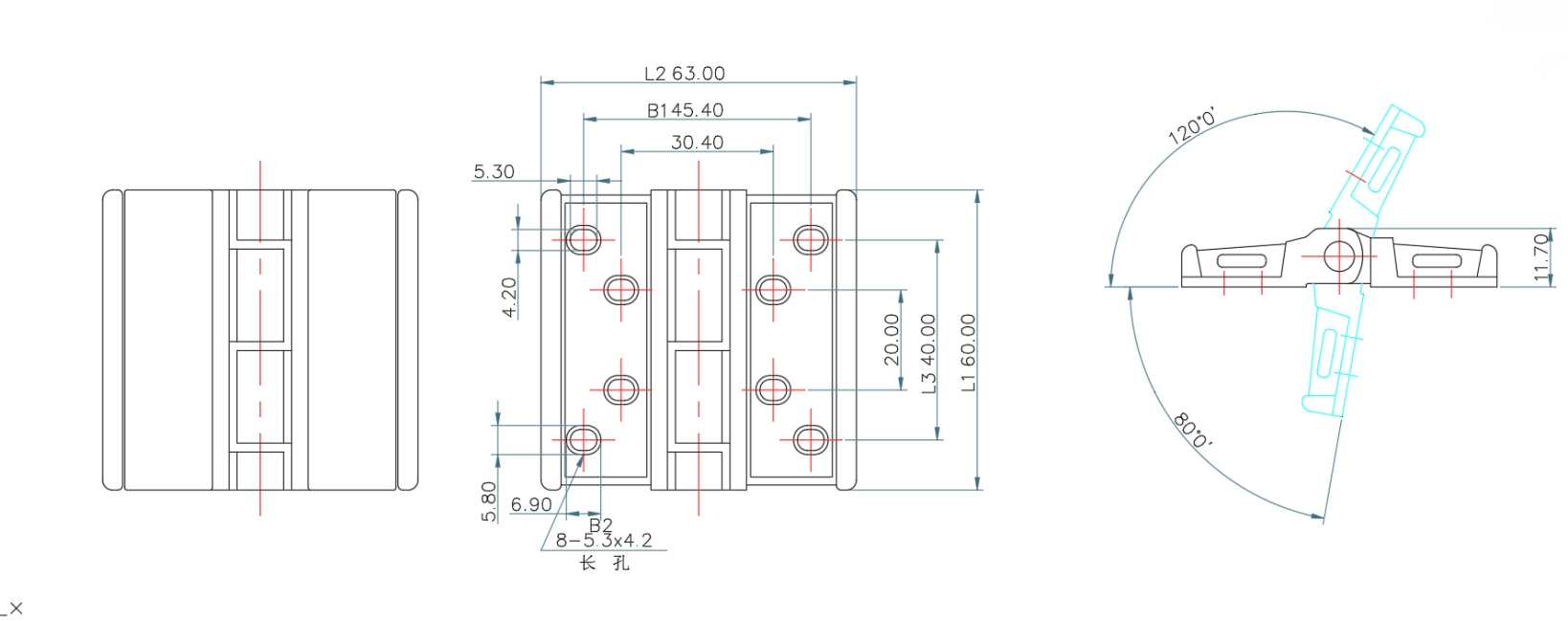

基本尺寸

产品型号

Product Model

产品单重

Weight

装箱数

PCS

L1L2L3B1B2
100
10482728-9×5.4CL-058-1

806652628-8×5.4CL-058-2

60634045.48-5.3*4.2CL-058-3
