KL-CL-65-1

1.材料：锌合金铰链，PA-6垫片，碳钢销子2.表面处理：喷无光黑、镀亮铬合镀哑光 ，销子镀蓝白锌3.结构说明：可开启角度180°

PDF下载 2D下载 3D下载


1. Material: Zinc alloy hinge, PA-6 gasket, carbon steel pin

2. Surface treatment: Spray matte black, plated with bright chromium and matte, pins coated with blue and white zinc

3. Structural description: Can be opened at an angle of 180 °

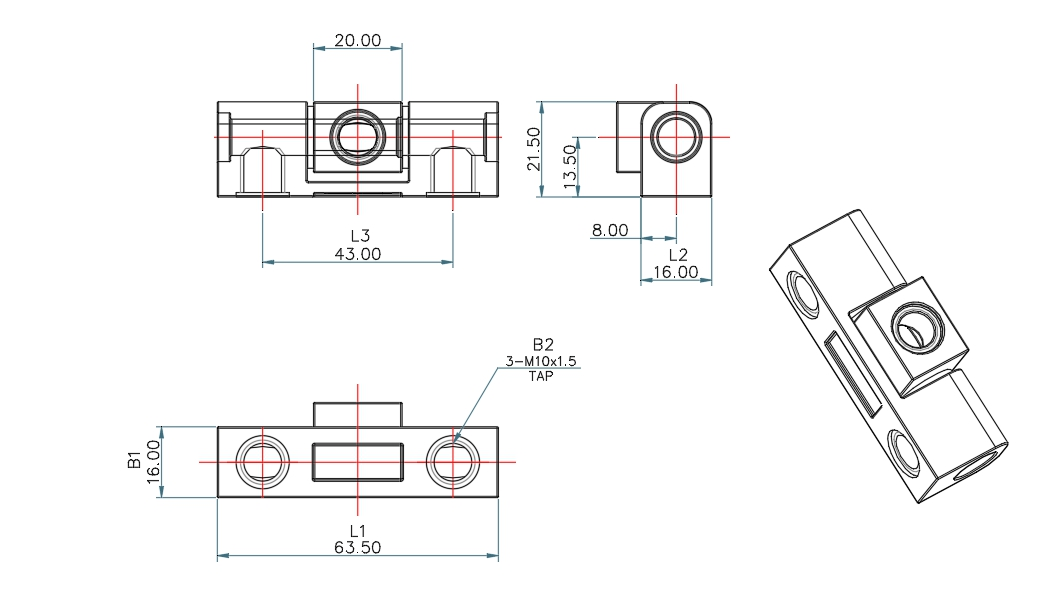

基本尺寸/Basic dimensions

产品型号

Product Model

产品单重

Weight

装箱数

PCS

L1L2L3B1
B2CL-65-1

63.51643163-M10×1.5
