KL-CL-075

1.材料：锌合金动静铰链2.表面处理：无光黑3.结构说明：约为180°

PDF下载 2D下载 3D下载


1. Material: Zinc alloy dynamic and static hinges

2. Surface treatment: matte black

3. Structural description: Approximately 180 °

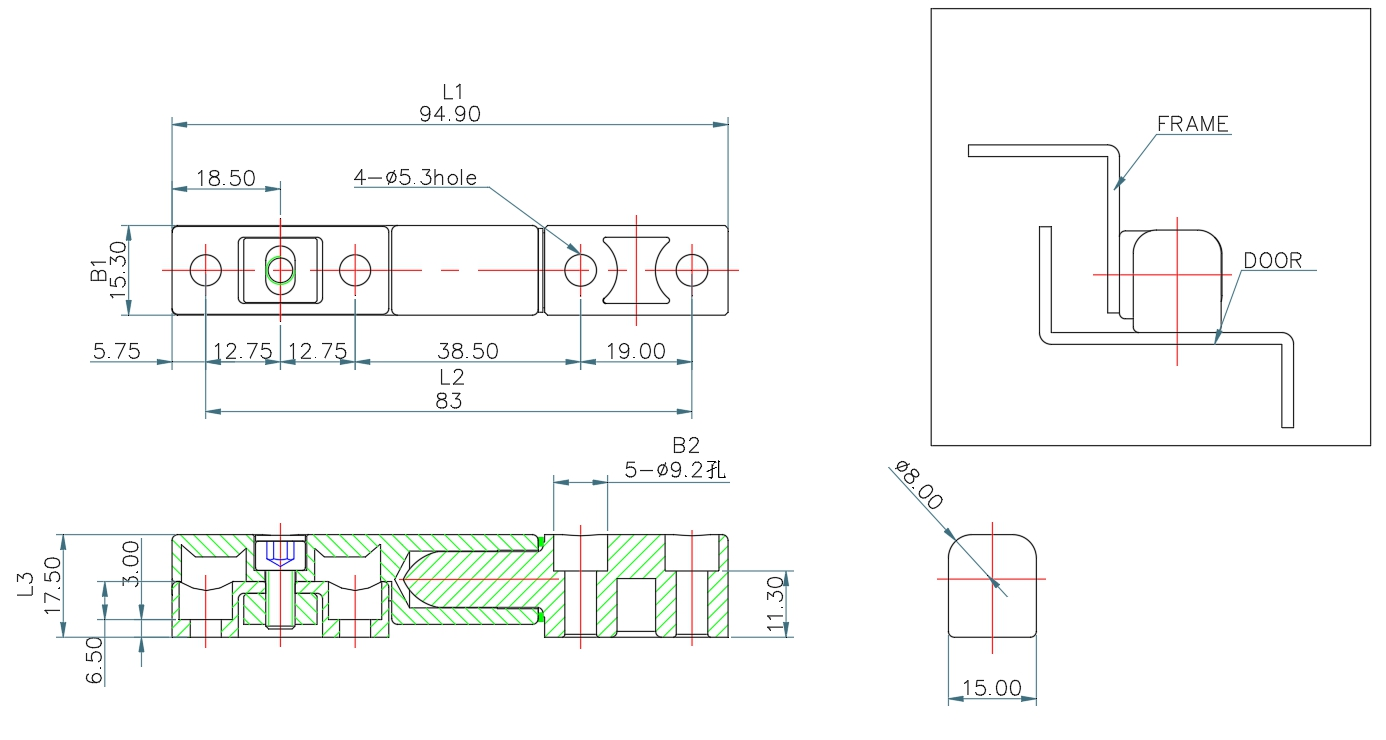

基本尺寸/Basic dimensions

产品型号

Product Model

产品单重

Weight

装箱数

pcs

L1L2L3B1B2CL-075

94.98317.515.35-∅9.2
