KL-CL-219

1.材料：锌合金动、静铰链，分不锈钢和镀镍销子2.表面处理：镀亮铬、沙铬、喷黑3.结构说明：转动约为180°

PDF下载 2D下载 3D下载




1. Material: Zinc alloy dynamic and static hinges, divided into stainless steel and nickel plated pins

2. Surface treatment: bright chromium plating, sand chromium plating, black spray coating

3. Structural description: Rotation is about 180 °

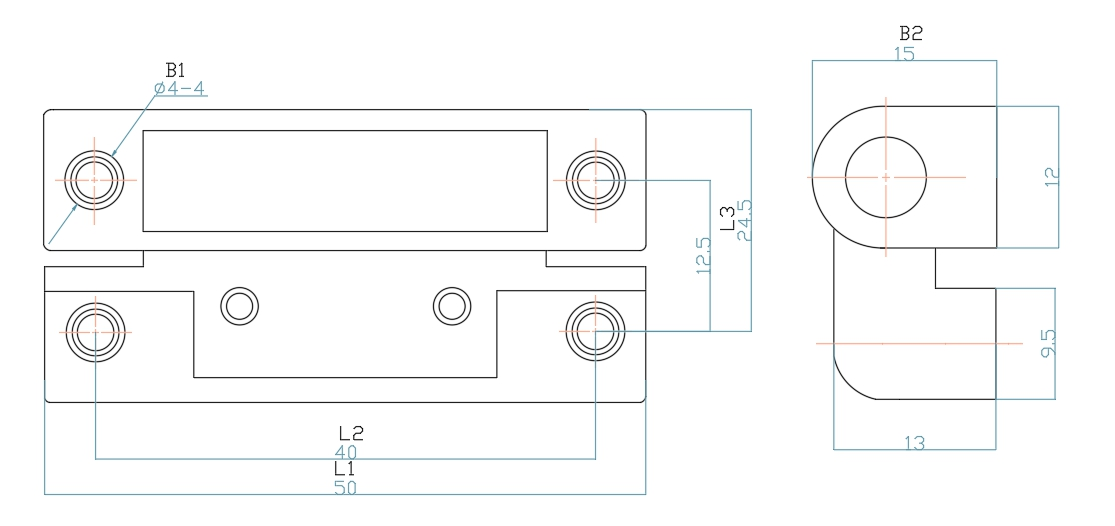

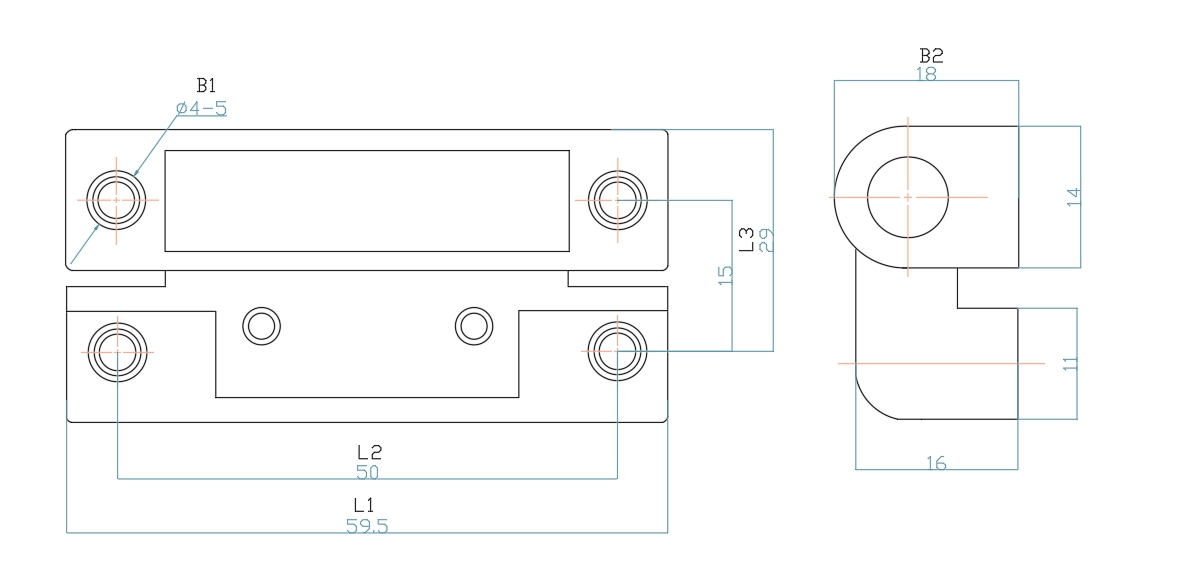

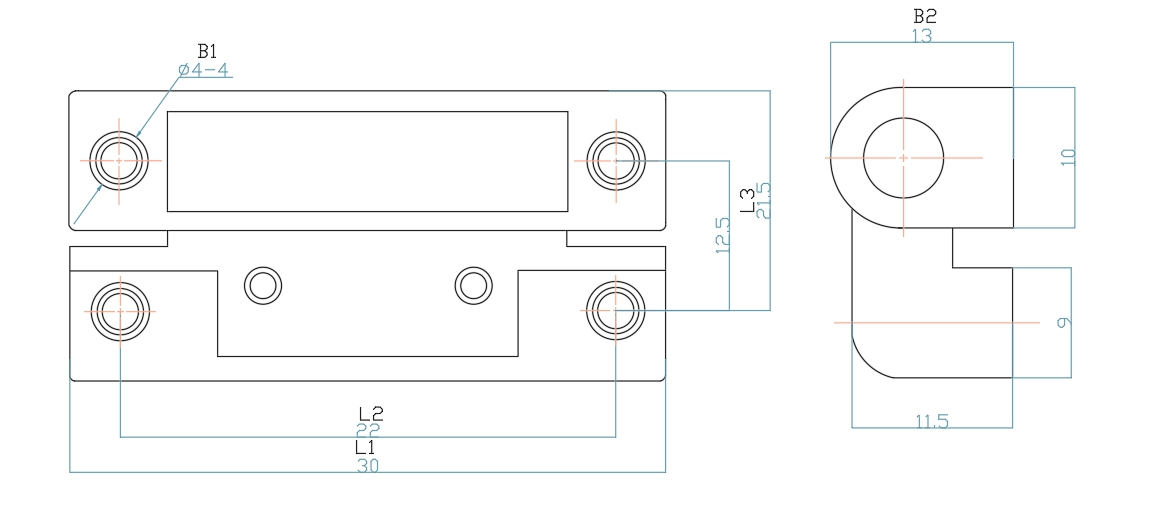

基本尺寸/Basic dimensions

产品型号

Product Model

产品单重

Weight

装箱数

PCS

L1L2L3B1B2
59.55029∅4-518CL-219-1

504024.5∅4-415CL-219-2

302021.5∅4-413CL-219-3
