1. Material: Zinc alloy hinge, PA-6 gasket, carbon steel pin
2. Surface treatment: Spray matte black, plated with bright chromium and matte, pins coated with blue and white zinc
3. Structural description: Can be opened at an angle of 180

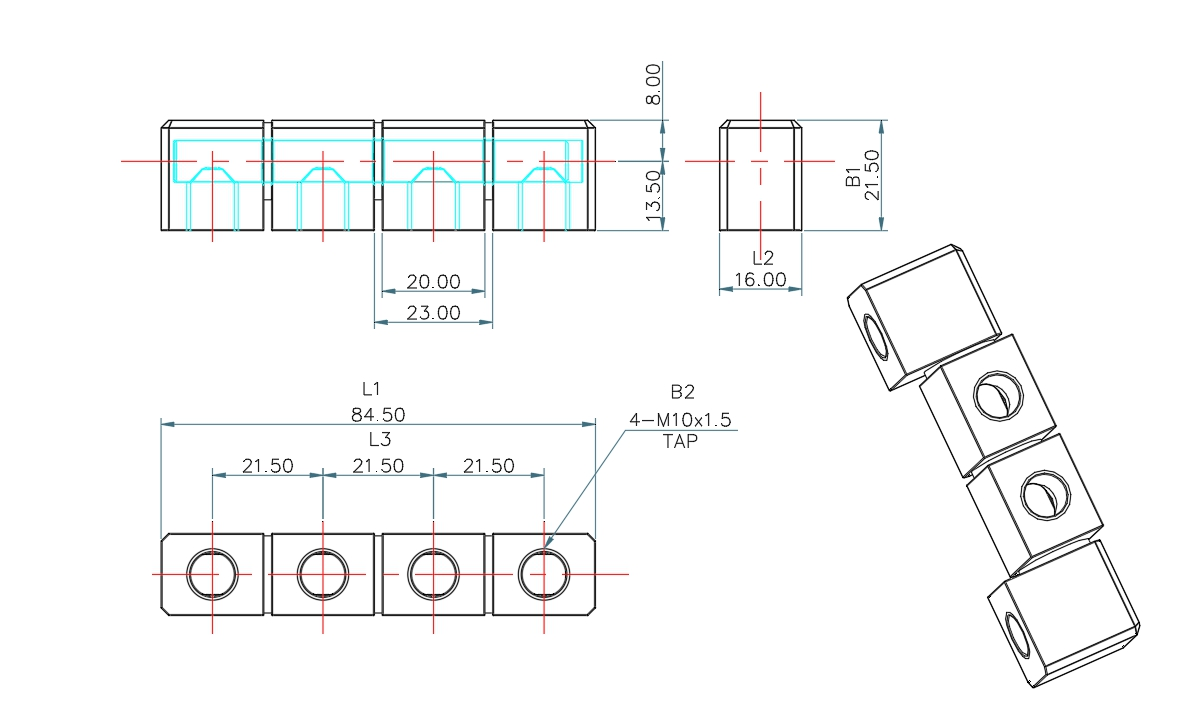

| 基本尺寸/Basic dimensions | 产品型号 Product Model | 产品单重 Weight | 装箱数 PCS | ||||
| L1 | L2 | L3 | B1 | B2 | CL-888-4 | ||
| 84.5 | 16 | 21.5 | 21.5 | 4-10×1.5 | |||
