KL-001

1.主体材质:锌合金动、静铰链，分不锈钢和镀镍钢销子2.表面处理:喷无光黑3.备注:转动约180°

PDF下载 2D下载 3D下载

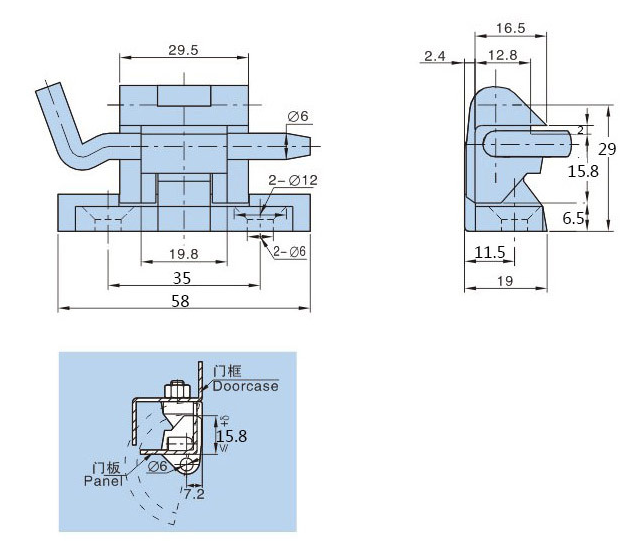

KL-001-1

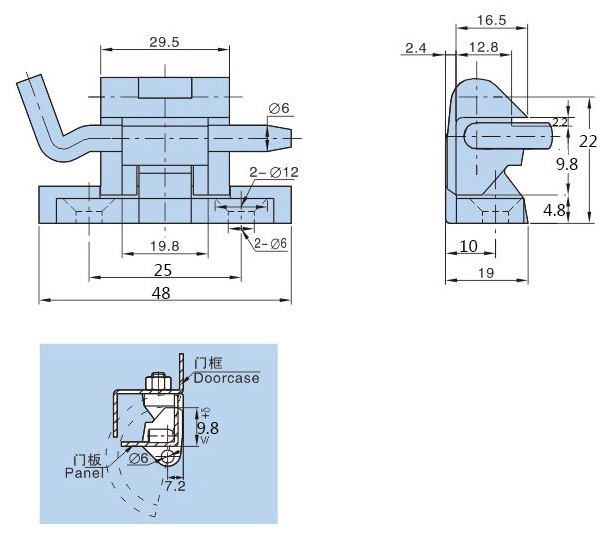

KL-001-2


1.Main material: Zinc alloy dynamic and static hinges, divided into stainless steel and nickel plated steel pins.

2.Surface treatment: spray matte black.

3.Remarks: rotate about 180 °

基本尺寸Dimensions

产品型号

Product

Number

产品单重(g)Weight装箱数Lot
H1H2H3H4L1L2δ
11.515.86.52935582KL001-1101200
109.84.82225482.2KL001-277300
