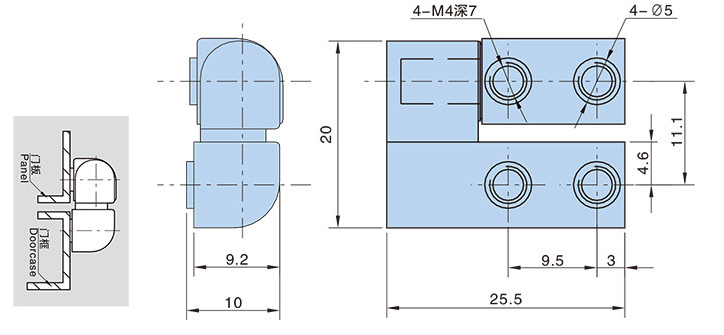

KL-002

1.主体材质:锌合金动、静铰链2.表面处理:喷无光黑3.备注:转动约180°

PDF下载 2D下载 3D下载


1.Main material: Zinc alloy dynamic and static hinges

2.Surface treatment: Spray matte black

3.Remarks: Rotate about 180 °

产品型号及特性 Product Number产品单重(g)Weight

装箱数Lot

右铰链 Right hingeKL-002R25500
左铰链 Left hingeKL-002L25500
