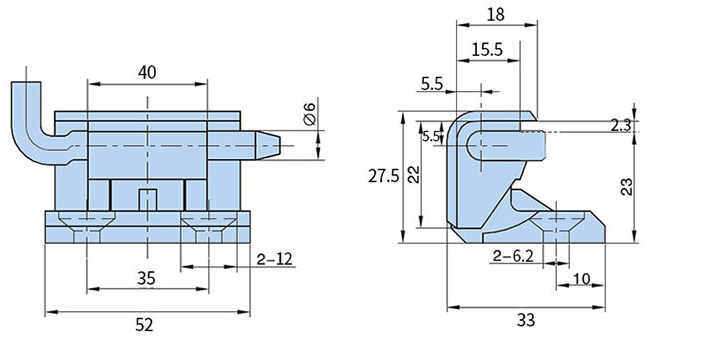

KL004-1

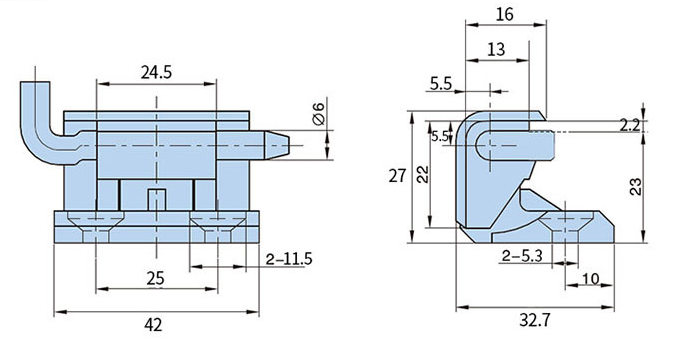

KL004-2

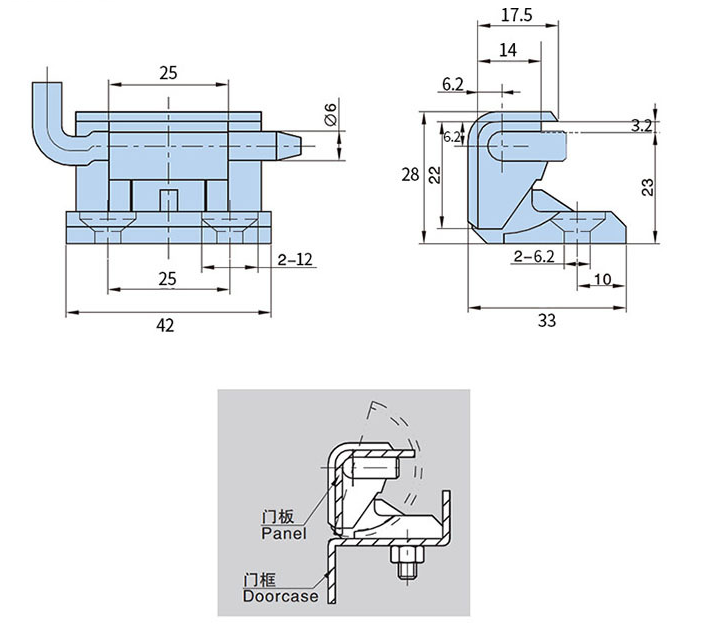

KL004-3
1.Main material: Zinc alloy dynamic and static hinges, divided into stainless steel and nickel plated steel pins.
2.Surface treatment: bright chromium plating, sand chromium plating, spray matte black.
3.Remarks: Rotate about 180 °
| 基本尺寸Dimensions | 产品型号及特性 Product Number | |||||||||||||
| H1 | H2 | H3 | H4 | L1 | L2 | L3 | L4 | ∅C | δ | ∅ | 喷无光黑 Black powder coated | 镀亮铬 Bright chrome plating | 产品单重(g) Weight | 装箱数 Lot |
| 18 | 15.5 | 27.5 | 5.5 | 52 | 40 | 35 | 33 | 6.2 | 2.3 | 12 | KL004-1.3 | KL004-1.1 | 140 | 200 |
| 16 | 13 | 27 | 5.5 | 42 | 24.5 | 25 | 32.7 | 5.3 | 2.2 | 11.5 | KL004-2.3 | KL004-2.1 | 135 | 200 |
| 17.5 | 14 | 28 | 6.2 | 42 | 25 | 25 | 33 | 6.2 | 3.2 | 12 | KL004-3.3 | KL004-3.1 | 129 | 200 |
