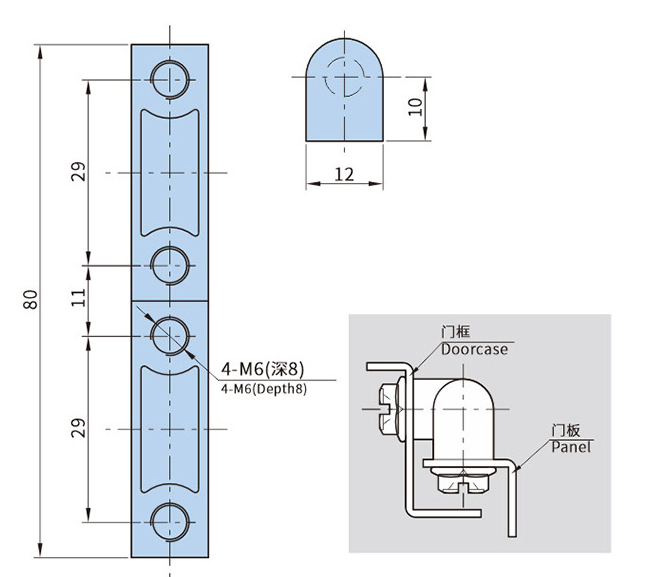

KL-005

1.主体材质:锌合金动、静铰链，分不锈钢和镀镍钢销子2.表面处理:镀亮铬,喷无光黑3.备注:转动约180°

PDF下载 2D下载 3D下载


1.Main material: Zinc alloy dynamic and static hinges, divided into stainless steel and nickel plated steel pins.

2.Surface treatment: bright chrome plated, sprayed with matte black.

3.Remarks: Rotate about 180 °

型号 Product no.产品单重(g)Weight

装箱数Lot

KL-00573400
