KL-006

1.材质：锌合金动、静铰链，分不锈钢和镀镍钢销子，铜垫圈2.表面处理：喷无光黑，喷沙纹黑3.备注：转动约180°

1.Material: Zinc alloy dynamic and static hinges, divided into stainless steel and nickel plated steel pins, copper washers.

2.Surface treatment: spray matte black, sandblasted black.

3.Remarks: rotate about 180 °

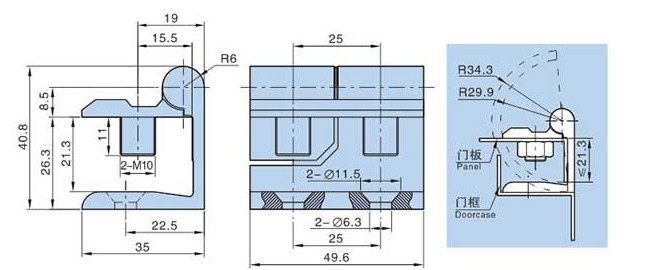

产品型号及特性 Product Number
左铰链 Left hinge						右铰链 Right hinge
静铰链为6.3沉孔 fixed hinge with 6.3 counterbore	产品单重(g) Weight	装箱数 Lot	静铰链带M10镶件 fixed hinge with M10 screw	产品单重(g) Weight	装箱数 Lot	静铰链为∅6.3沉孔 fixed hinge with 6.3 counterbore	产品单重(g) Weight	装箱数 Lot	静铰链带M10镶件 fixed hinge with M10 screw	产品单重(g) Weight	装箱数 Lot
KL006L-1	157	150	KL006L-2	218	150	KL006R-1	218	150	KL006R-2	218	150
