KL-008

1.主体材质:锌合金动铰链，镀锌钢板静铰链和压板，分不锈钢和镀镍钢销子;2.表面处理:喷无光黑、喷塑灰3.备注:转动约180°

PDF下载 2D下载 3D下载

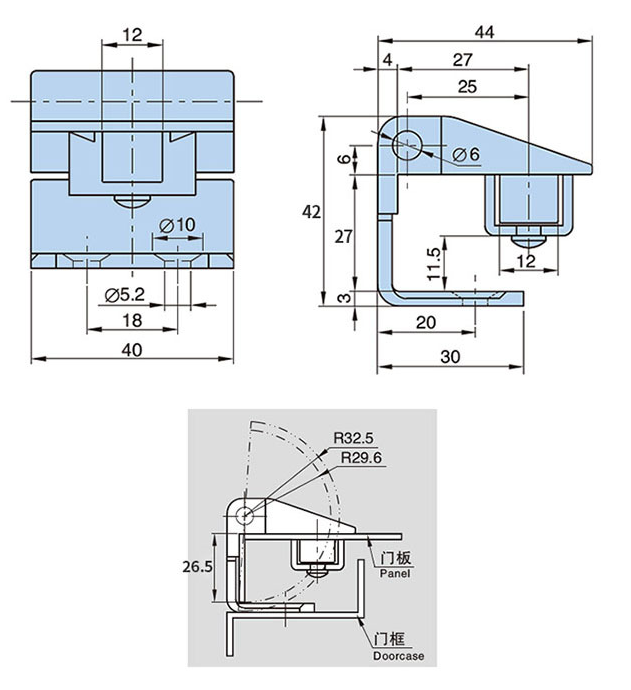

KL008-1

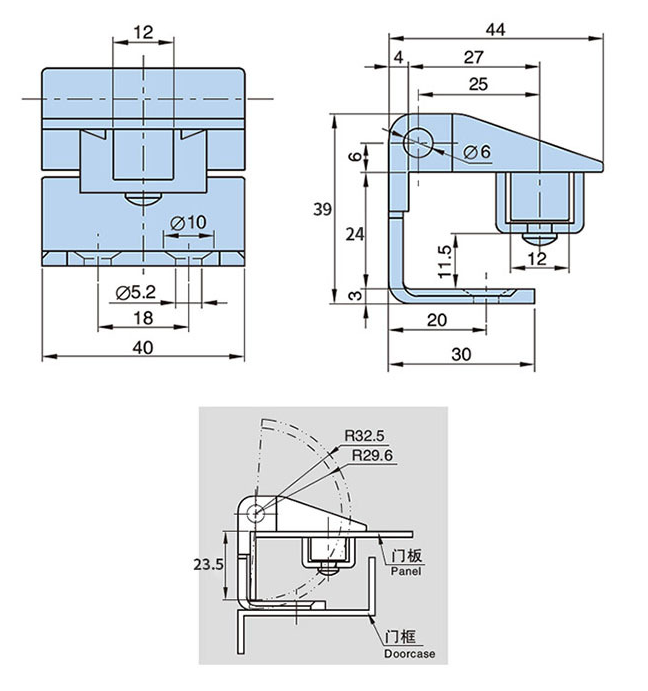

KL008-2


1.Main material: Zinc alloy dynamic hinge, galvanized steel plate static hinge and pressure plate, divided into stainless steel and nickel plated steel pins;

2.Surface treatment: Spray matte black and plastic gray.

3.Remarks: Rotate about 180 °

基本尺寸Dimensions产品型号及特性 ProductNumber
H1H2H3喷无光黑Black powder coated喷塑灰Gray paint sprayed产品单重(g)Weight装箱数Lot
422726.5KL008-1.3KL008-1.8161150
392423.5KL008-2.3KL008-2.8158150
