KL-017

1.主体材质:锌合金动、静铰链，分不锈钢和镀镍钢销子及镶嵌螺钉2.表面处理:喷无光黑3.备注:转动约180°

PDF下载 2D下载 3D下载

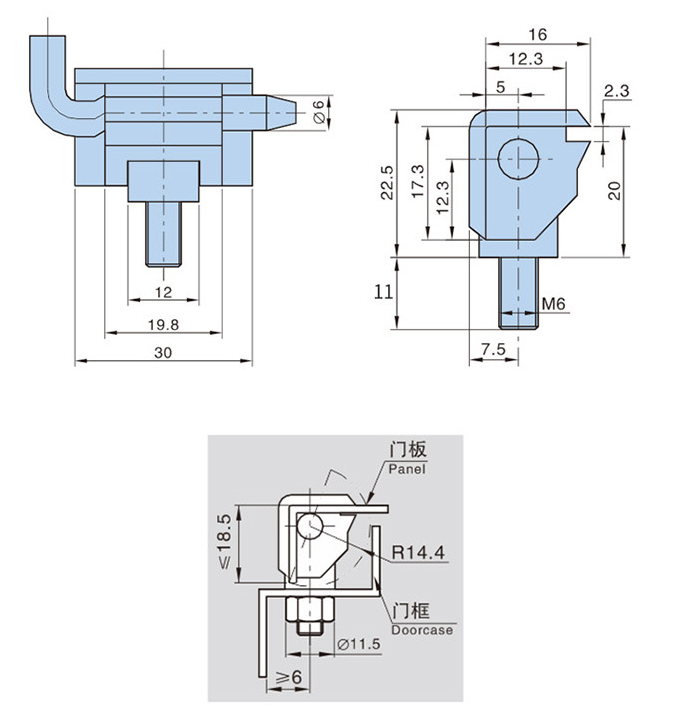

KL017-1

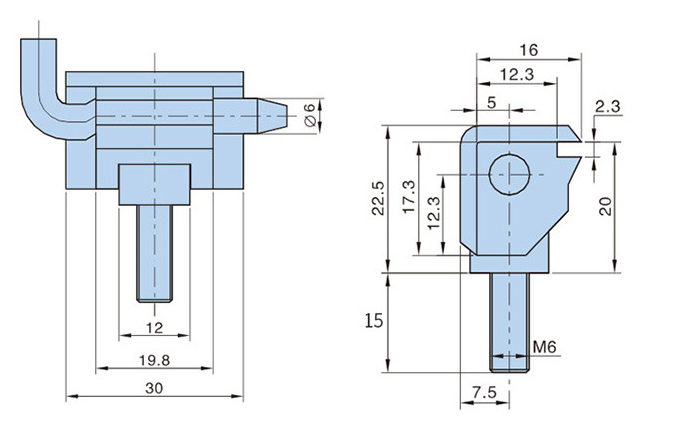

KL017-2


1.Main material: Zinc alloy dynamic and static hinges, divided into stainless steel and nickel plated steel pins and embedded screws.

2.Surface treatment: spray matte black.

3.Remarks: rotate about 180 °

基本尺寸Dimensions产品型号及特性 Product Number

喷无光黑

Black powder coated

镀沙铬

Gray chrome plating

产品单重(g)Weight装箱数Lot
15KL017-1.3KL017-1.250.5400
12KL017-2.3KL017-2.248.5400
