KL-021

1.主体材质:锌合金动、静铰链，分不锈钢和镀镍钢销子2.表面处理:喷无光黑,镀亮铬3.备注:转动约180°

PDF下载 2D下载 3D下载

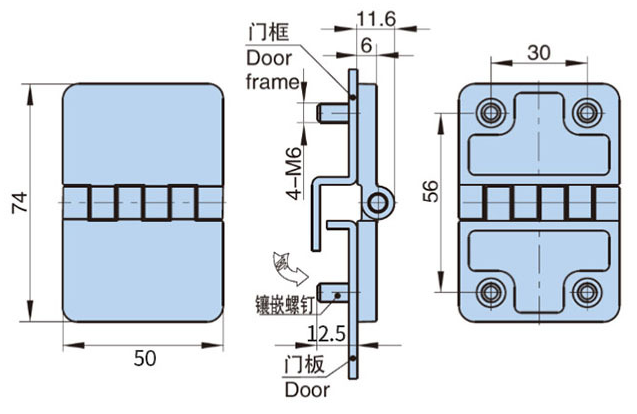

KL021-1

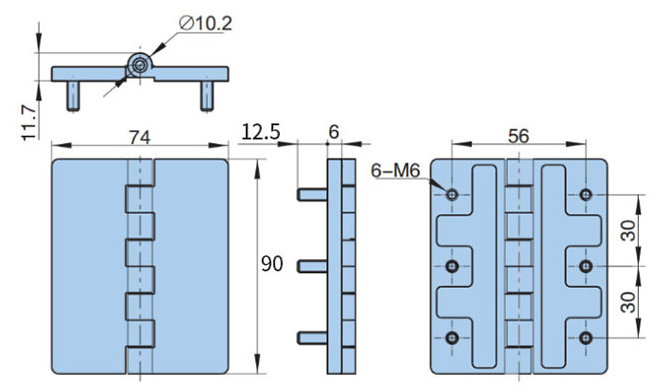

KL021-2/2A


1.Main material: Zinc alloy dynamic and static hinges, divided into stainless steel and nickel plated steel pins.

2.Surface treatment: spray matte black, plated with bright chromium.

3.Remarks: rotate about 180 °

型号 Product no.基本尺寸Dimensions产品单重(g)Weight装箱数Lot
L1
L2
KL021-19012.5207.5100
KL021-25012.5139200
KL021-2A(带垫)5012.5128.7200
