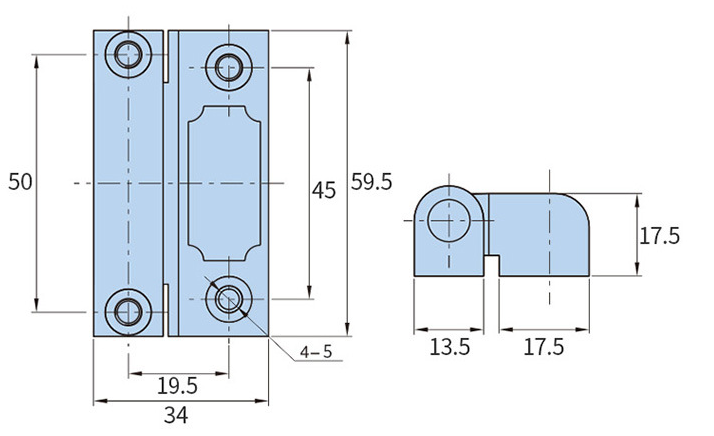

KL023-1

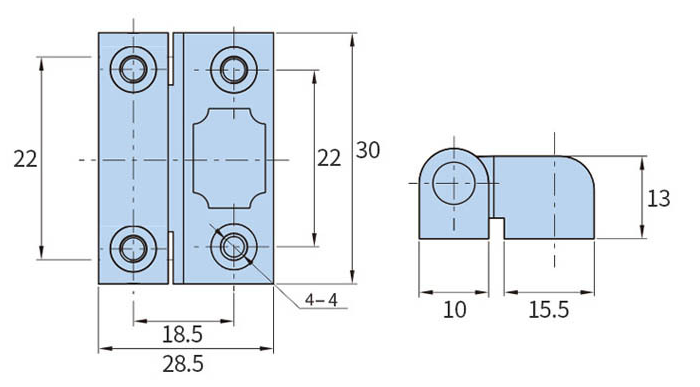

KL023-2

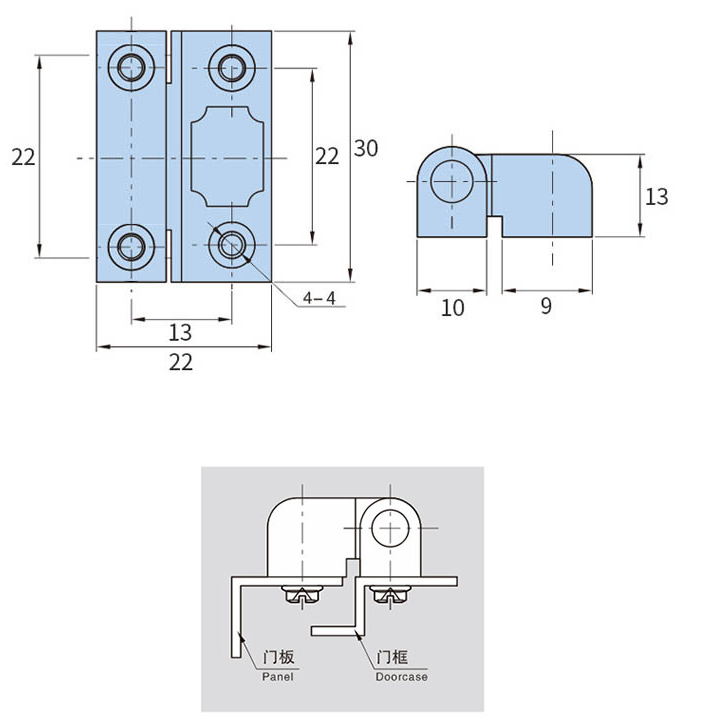

KL023-3
1.Main material: Zinc alloy dynamic and static hinges, divided into stainless steel and nickel plated steel pins.
2.Surface treatment: spray matte black and sand plated chromium.
3.Remarks: rotate about 180 °
基本尺寸Dimensions | 产品型号及特性 Product Number | |||||||||||||||
| 无阻尼式铰链 Without torque | 阻尼式铰链 Torque hinge | |||||||||||||||
| L1 | L2 | L3 | B1 | B2 | B3 | B4 | H | M | 喷无光黑 Black powder coated | 镀沙铬 Gray chrome plating | 产品单重(g) Weight | 装箱数Lot | 喷无光黑 Black powder coated | 镀沙铬 Gray chrome plating | 产品单重(g) Weight | 装箱数Lot |
| 59.5 | 50 | 45 | 34 | 19.5 | 17.5 | 13.5 | 17.5 | 5 | KL023-1.3 | KL023-1.2 | 165 | 200 | KL023-1Z3 | KL023-1Z2 | 165 | 200 |
| 30 | 22 | 22 | 28.5 | 18.5 | 15.5 | 10 | 13 | 4 | KL023-2.3 | KL023-2.2 | 42.5 | 400 | KL023-2Z3 | KL023-2Z2 | 42.5 | 400 |
| 30 | 22 | 22 | 22 | 13 | 9 | 10 | 13 | 4 | KL023-3.3 | KL023-3.2 | 43 | 500 | KL023-3Z3 | KL023-3Z2 | 43 | 500 |
