KL-029

1.主体材质:锌合金动、静铰链，分不锈钢和镀镍钢销子2.表面处理:镀亮铬3.备注:转动约180°

PDF下载 2D下载 3D下载

KL029-1


KL029-2


1.Main material: Zinc alloy dynamic and static hinges, divided into stainless steel and nickel plated steel pins.

2.Surface treatment: bright chrome plating.

3.Remarks: Rotate about 180 °

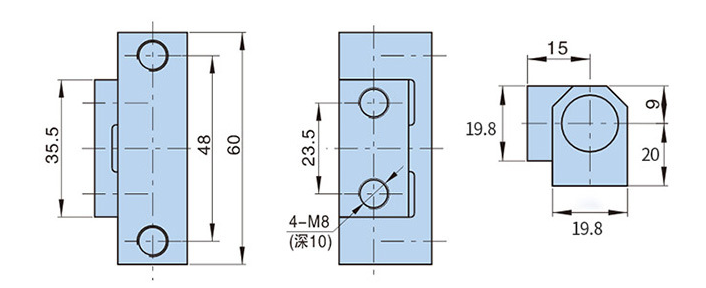

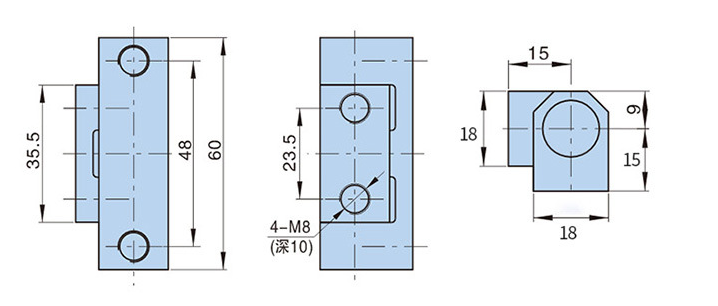

基本尺寸Dimensions

产品型号及特性

Product Number

产品单重(g)

Weight

装箱数

Lot

L1L2
2019.8KL029-1228150
1518KL029-2170150
14.216KL029-3
