KL-033

1.主体材质:锌合金动、静铰链，分不锈钢和镀镍钢销子及镶嵌螺钉2.表面处理:喷无光黑3.备注:转动约180°

PDF下载 2D下载 3D下载

KL033-1R


KL033-2R


1.Main material: Zinc alloy dynamic and static hinges, divided into stainless steel and nickel plated steel pins and embedded screws.

2.Surface treatment: spray matte black.

3.Remarks: rotate about 180 °

基本尺寸 Dimensions产品型号及特性Product Number产品单重(g)Weight装箱数Lot
L1L2L3L4B1B2B3B4B5H

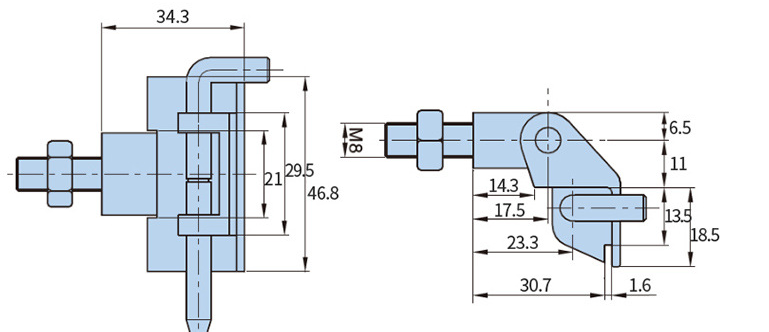

46.829.518.513.534.330.723.317.514.31.6KL033-1R/L146200

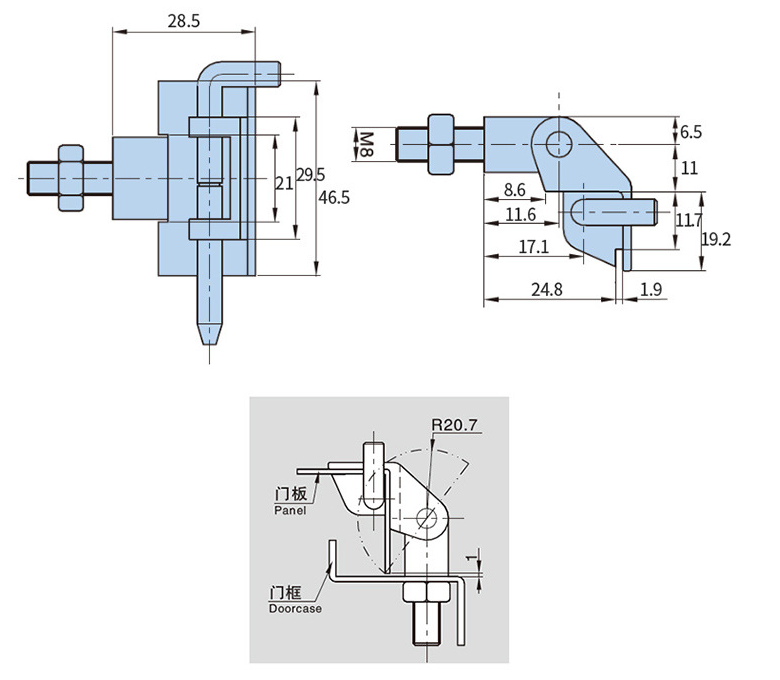

46.529.519.211.728.524.817.111.68.61.9KL033-1R/L136.1200
