KL-036

1.主体材质:锌合金静铰链，镀锌钢动铰链，分不锈钢和镀镍钢销子2备注:转动约180°

PDF下载 2D下载 3D下载

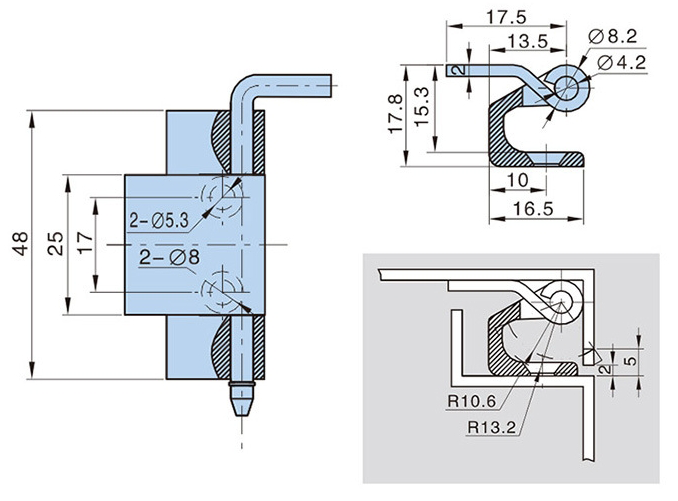

KL036-1

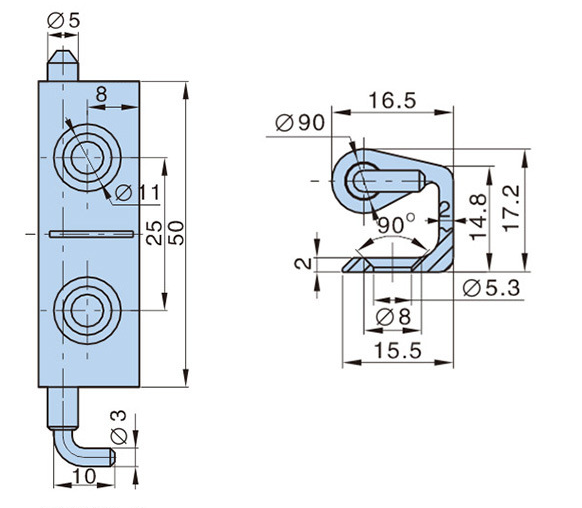

KL036-2


1.Main material: Zinc alloy static hinge, galvanized steel dynamic hinge, divided into stainless steel and nickel plated steel pins.

2.Remarks: Rotate about 180 °

产品型号及特性 Product Number

喷无光黑

Black powder coated

产品单重(g)

Weight

装箱数Lot

镀沙铬

Gray chrome plating

产品单重(g)

Weight

装箱数Lot
KL036-1.351.5400KL036-1.251.5400
KL036-2.343400KL036-2.243400
