1.Main material: Zinc alloy dynamic and static hinges, galvanized steel dynamic hinges and mounting plates, divided into stainless steel and nickel plated steel pins.
2.Surface treatment: spray matte black, spray blue-green.
3.Remarks: rotate about 180 °

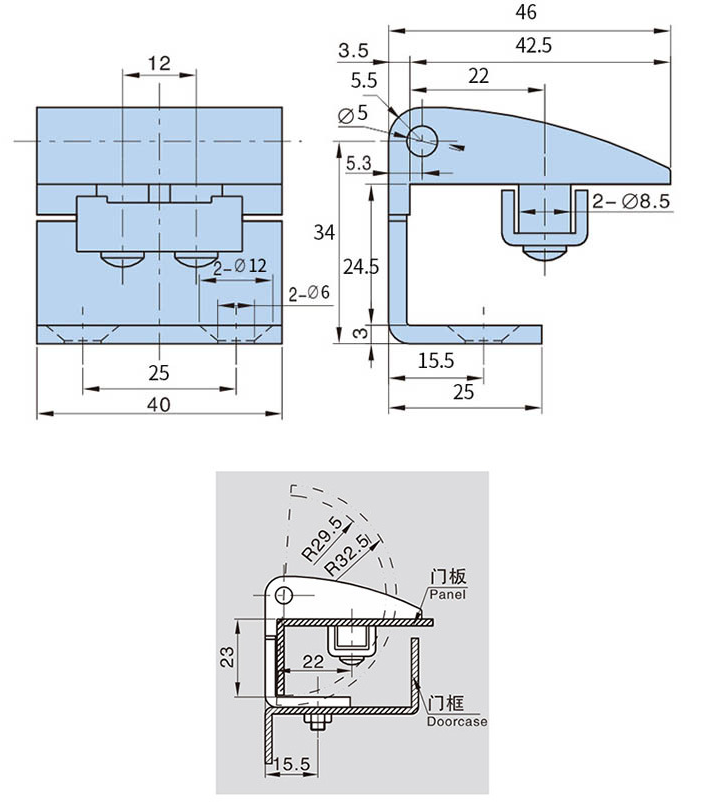

| 基本尺寸 Dimensions | 产品型号及特性 Product Number | ||||||||||||||
| L1 | L2 | L3 | L4 | L5 | L6 | B1 | B2 | ∅A | ∅B | ∅C | R | 喷无光黑Black power coated | 喷蓝绿色Bluish green | 产品单重(g) Weight | 装箱数Lot |
| 25 | 46 | 42.5 | 22 | 15.5 | 25 | 34 | 24.5 | 6 | 12 | 5 | 5.5 | KL044-1.3 | KL044-1.9 | 142 | 200 |
| 20 | 46.3 | 43.2 | 22.7 | 18 | 25.5 | 32 | 22.5 | 7 | 11.5 | 5.1 | 5 | KL044-1B.3 | KL044-1B.9 | 126 | 200 |
| 25 | 46 | 42.5 | 20.2 | 18 | 25 | 24.5 | 15 | M6 | 5.1 | 5 | KL044-7.3 | KL044-7.9 | 135 | 200 | |
