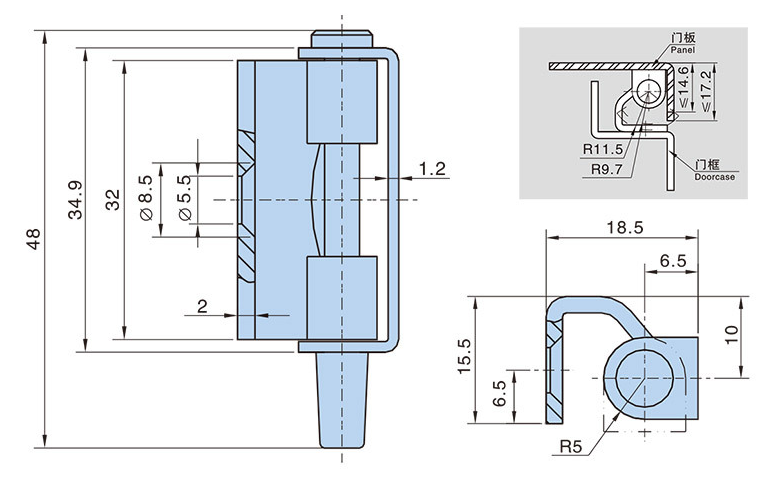

KL-049

1.主体材质:镀锌钢板铰链，镀镍钢销子2.表面颜色:镀蓝白锌3.备注:转动约为100°

PDF下载 2D下载 3D下载


Main material: galvanized steel plate hinge, nickel plated steel pin

Surface color: blue and white zinc plated

Remarks: Rotation is about 100 °

型号 Product no.产品单重(g)Weight装箱数Lot
KL-049-128500
