KL-050-1S
KL-050-2S
KL-050-3S
KL-050-2GS
1.Main material: stainless steel dynamic and static hinges, stainless steel pins.
2.Surface treatment: brushed.
3.Remarks: Rotation is about 180 °
| 基本尺寸 Dimensions | 产品型号及特性 Product Number | |||||||||
| L1 | L2 | L3 | L4 | H | ∅C | ∅D | H1 | 不锈钢 Stainless steel | 产品单重(g) Weight | 装箱数 Lot |

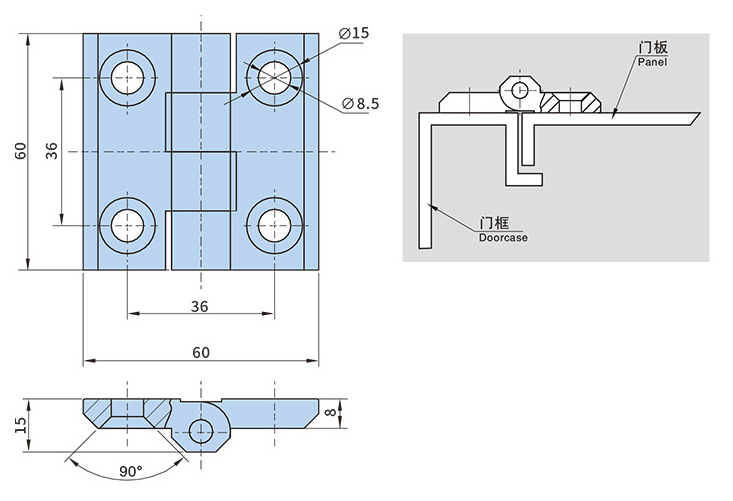

| 60 | 36 | 36 | 60 | 15 | 15 | 8.5 | 8 | KL050-1S | 190 | 200 |

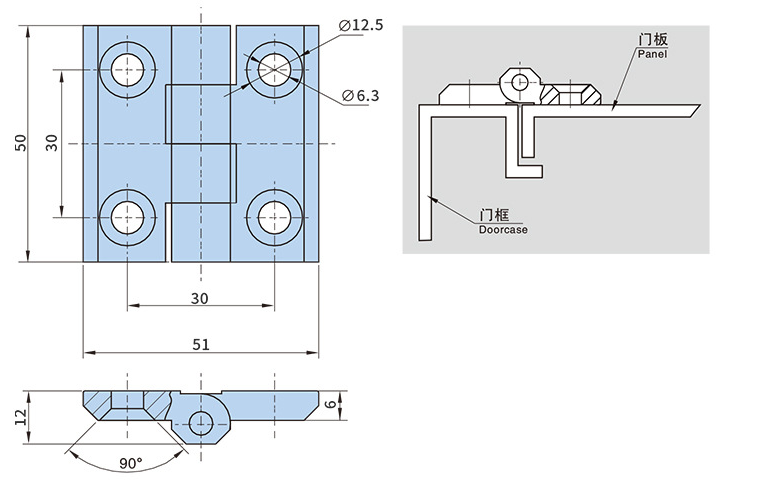

| 50 | 30 | 30 | 51 | 12 | 12.5 | 6.3 | 6 | KL050-2S | 110 | 200 |

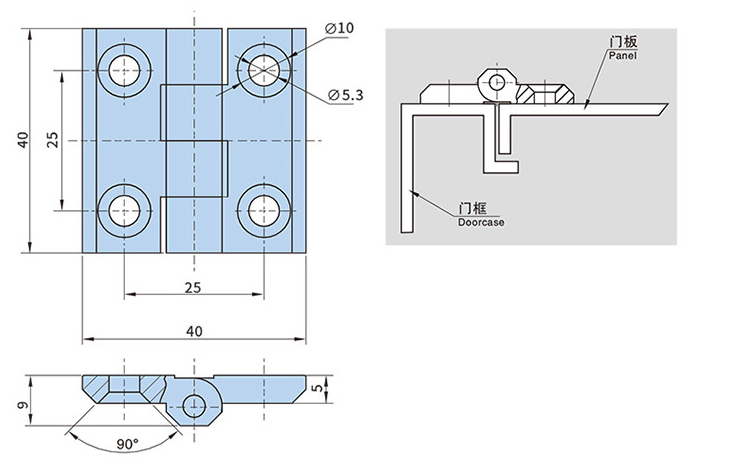

| 40 | 25 | 25 | 40 | 9 | 10 | 5.3 | 5 | KL050-3S | 50 | 500 |

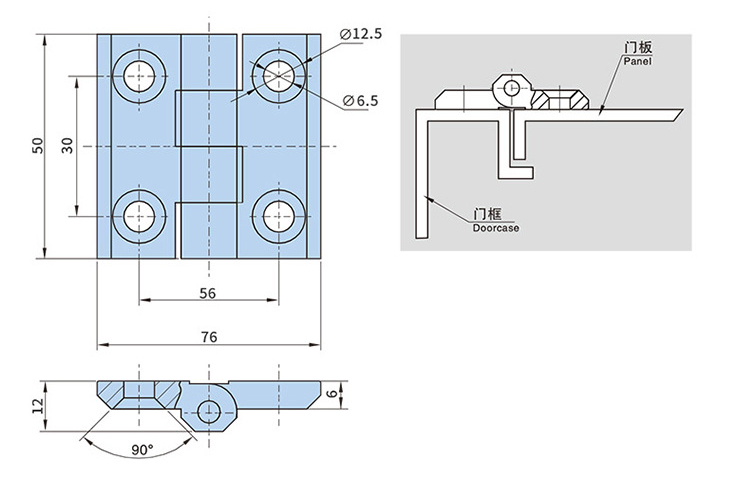

| 50 | 30 | 56 | 76 | 12 | 12.5 | 6.5 | 6 | KL050-2GS | 145 | 200 |
