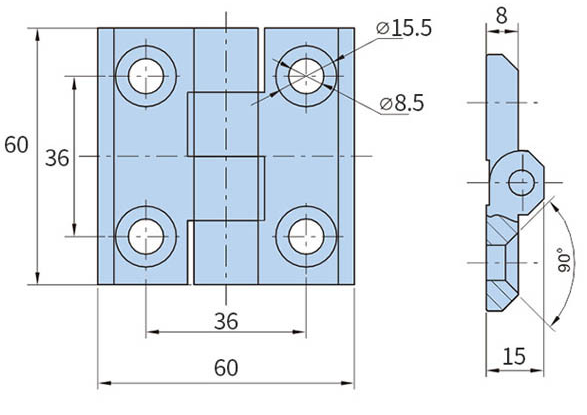

KL-050-1

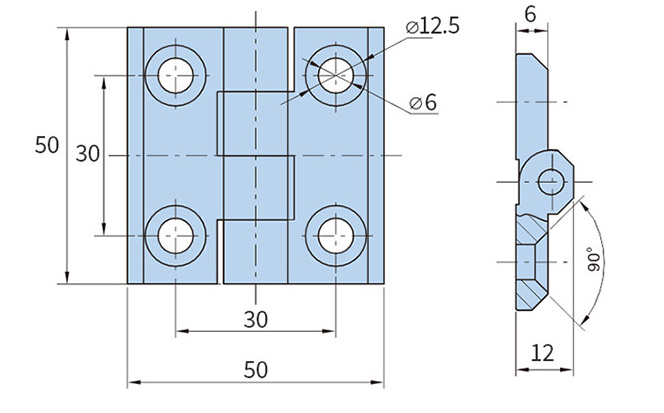

KL-050-2

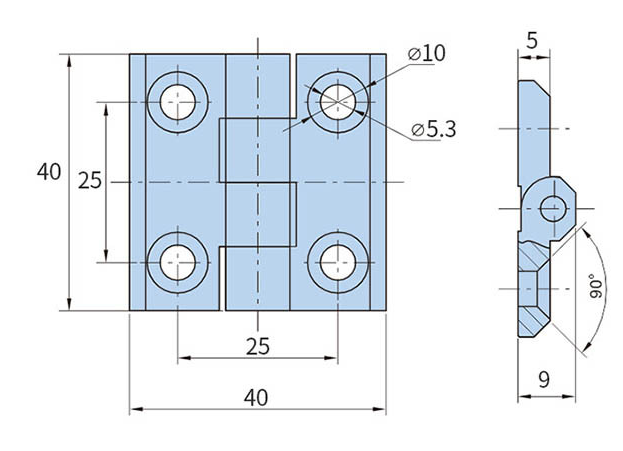

KL-050-3

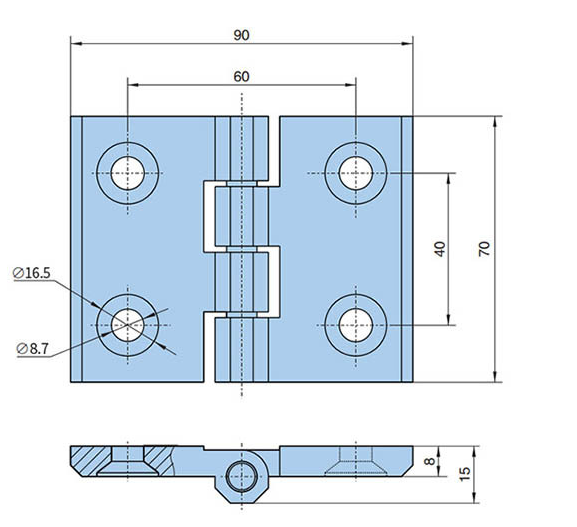

KL-050-1G

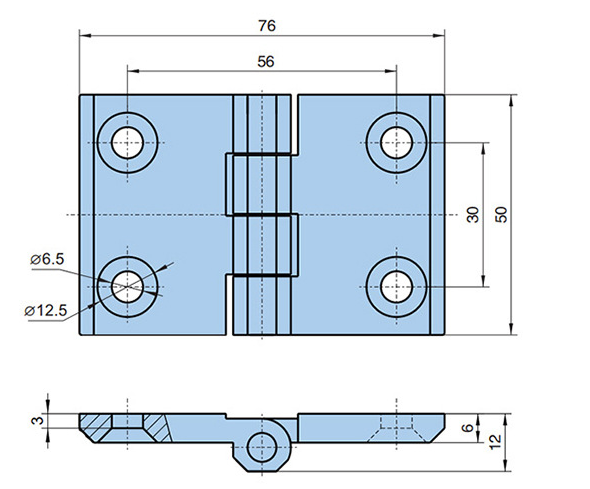

KL-050-2G
1.Main material: Zinc alloy dynamic and static hinges, divided into stainless steel and blue and white plated pins.
2.Surface treatment: sprayed with matte black and plated with bright chromium.
3.Remarks: Rotate about 180 °
| 基本尺寸 Dimensions | 产品型号及特性 Product Number | |||||||||||||
| L1 | L2 | L3 | L4 | H | ∅C | ∅D | H1 | 喷无光黑 Black powder coated | 镀亮铬 Bright chrome plating | 产品单重(g) Weight | 装箱数 Lot | 不锈钢 Stainless steel | 产品单重(g) Weight | 装箱数 Lot |
| 60 | 36 | 36 | 60 | 15 | 15.5 | 8.5 | 8 | 050-1.3 | 050-1.1 | 142 | 200 | 050-1S | 168.2 | 200 |
| 50 | 30 | 30 | 50 | 12 | 12.5 | 6 | 6 | 050-2.3 | 050-2.1 | 89.5 | 400 | 050-2S | 102 | 200 |
| 40 | 25 | 25 | 40 | 9 | 10 | 5.3 | 5 | 050-3.3 | 050-3.1 | 45 | 500 | 050-3S | 50 | 500 |
| 50 | 30 | 56 | 76 | 12 | 12.5 | 6.5 | 6 | 050-2G.3 | 050-2G.1 | 120.5 | 200 | 050-2GS | 145 | 200 |
| 70 | 40 | 60 | 90 | 15 | 16.5 | 8.7 | 8 | 050-1G.3 | 050-1G.1 | 350 | 500 | |||
