KL-051-1
KL-051-2
KL-051-3
1.Main material: Zinc alloy dynamic and static hinges, divided into stainless steel and nickel plated steel pins and embedded screws;
2.Surface treatment: Spray matte black and plated with bright chromium.
3.Remarks: Rotate about 180 °
| 基本尺寸 Dimensions | 产品型号及特性 Product Number | 产品单(g) Weight | 装箱数 Lot | ||||||
| L1 | L2 | H1 | H2 | M | H3 | 喷无光黑 Black powder coated | 镀亮铬 Bright chrome plating | ||

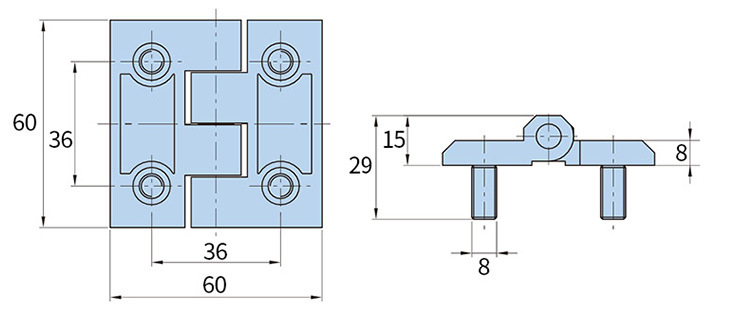

| 60 | 36 | 29 | 15 | 8 | 8 | KL051-1.3 | KL051-1.1 | 208 | 150 |

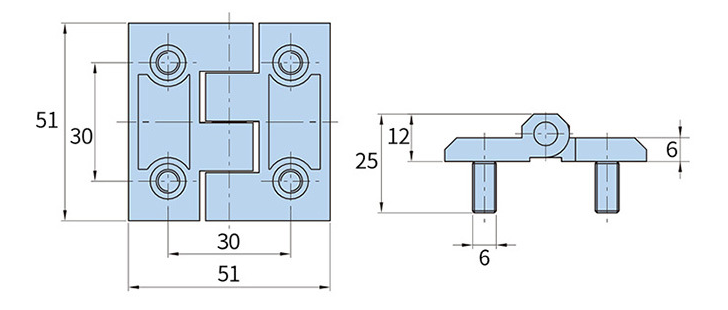

| 51 | 30 | 25 | 12 | 6 | 6 | KL051-2.3 | KL051-2.1 | 119.5 | 200 |

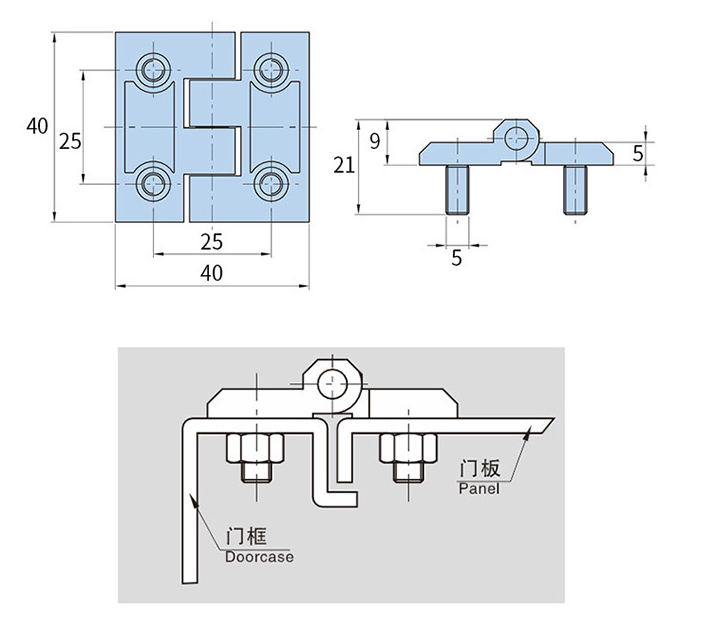

| 40 | 25 | 21 | 9 | 5 | 5 | KL051-3.3 | KL051-3.1 | 62 | 400 |
